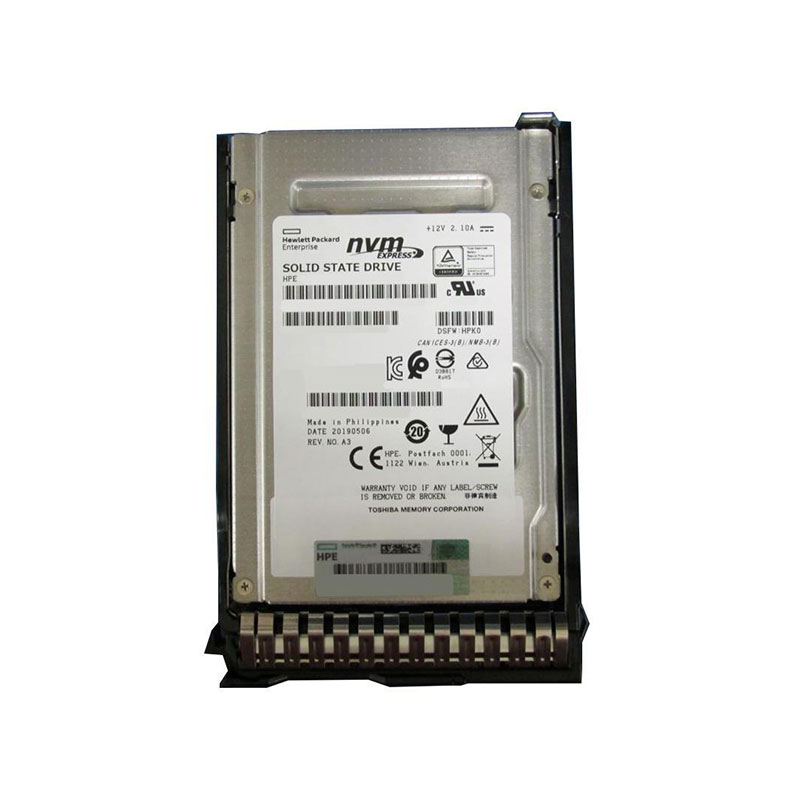

P20086-S21 HPE 1.6TB PCI-Express NVMe Gen4 Mixed Use SSD
P20086-S21 Overview
The HPE P20086-S21 1.6TB PCIe Gen4 NVMe Mixed Use High-Performance Solid State Drive (SSD) is a next-generation enterprise storage solution designed for HPE ProLiant Gen10 Plus and Gen11 servers. Featuring a U.3 Small Form Factor (SFF) and PCIe Gen4 x4 NVMe interface, it delivers ultra-fast data access, high IOPS, and low latency, making it ideal for mixed-use workloads that balance frequent reads and moderate writes, such as virtualization, cloud computing, database operations, and analytics.
Built with digitally signed CM6 firmware, the SSD ensures data integrity, security, and compatibility within enterprise environments. The Smart Carrier (SC) design provides hot-swap capability, easy installation, and LED indicators for drive health and activity monitoring.
$1,282
P20086-S21 Technical Specifications
HPE 1.6TB PCI-Express NVMe Gen4 Mixed Use High Performance Digitally Signed CM6 SFF SC U.3 Solid State Drive (SSD)
Part Number: P20086-S21
Brand: HPE
Capacity: 1.6TB
Interface: PCI Express 4.0 x4 (NVMe)
Form Factor: 2.5-inch Small Form Factor (SFF)
Connector Type: U.3 Universal Interface
Drive Type: Mixed Use (MU) Solid State Drive
Performance Class: High Performance Digitally Signed CM6
Data Transfer Rate: Up to 32Gbps (PCIe Gen4 x4)
Sequential Read Speed: Up to 7,000 MB/s
Sequential Write Speed: Up to 3,800 MB/s
Random Read (4K): Up to 1,000,000 IOPS
Random Write (4K): Up to 250,000 IOPS
Endurance Rating: 3 DWPD (Drive Writes Per Day)
NAND Flash Type: 3D TLC NAND
Latency (Read/Write): <0.1 ms / <0.2 ms typical
Power Consumption (Active): ~10W typical
Power Consumption (Idle): ~4W typical
Reliability (MTBF): 2 Million Hours
Operating Temperature: 0°C to 70°C
Hot-Pluggable: Yes
