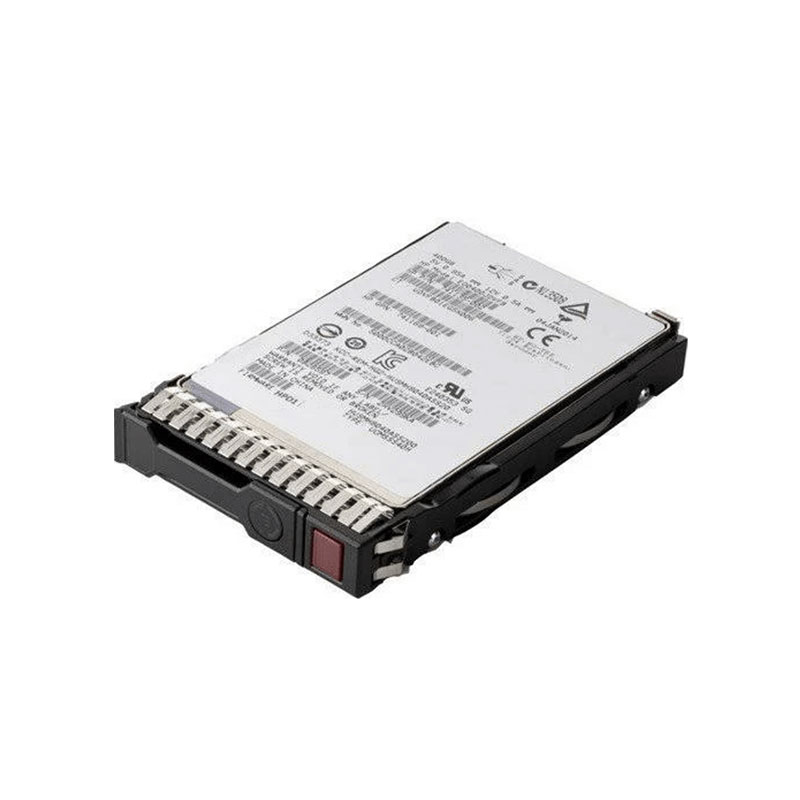

P22331-X21 HPE 960GB NVMe Solid State Drive
P22331-X21 Overview
The P22331-X21 HPE 960GB NVMe Solid State Drive is a high-performance solid-state drive that is designed to work with a variety of operating systems. It is compatible with several popular operating systems, including Microsoft Windows Server 2019 and 2016, Red Hat Enterprise Linux (RHEL) 7.x, SUSE Linux Enterprise Server (SLES) 12 SP3, and VMware ESXi 6.7 and 6.5.
To use the P22331-X21 drive with your operating system, an NVMe driver must be installed. For Windows Server 2016 and 2019, the Microsoft inbox NVMe driver is supported. For RHEL 7.x and SLES 12 SP3, the native NVMe driver is supported. And for VMware ESXi 6.7 and 6.5, the VMware NVMe driver is supported.
$840
P22331-X21 Technical Specifications
HPE 960 Gigabyte(GB) SFF Triple-Level Cell (TLC) Digitally Signed Firmware NVMe U.3 Peripheral Component Interconnect Express (PCI-E) x4 High-Performance SCN Read Intensive Solid State Drive for Server
Brand: HPE
MPN: P22331-X21
General
Device Type: Solid State Drive – Hot-Swap
Capacity: 960GB
Form Factor: 2.5 inch SFF
Interface: NVMe U.3 PCIe
NAND Flash Memory Type: Triple-Level Cell (TLC)
Connectivity: Single Port
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier NVMe (SCN)
Workload Type: Read Intensive
Expansion & Connectivity
Interfaces: 1 x PCIe NVMe
Compatible Bay: 2.5″ SFF
Power Consumption
Idle Time: 5.00 Watt
Random Read: 10.40 Watt
Random Write: 10.40 Watt
Sequential Read: 11.20 Watt
Sequential Write: 11.50 Watt
Random Read/Write: 11.40 Watt
Maximum: 11.50 Watt
Product Dimensions & Weight
Height: 5.75 inch (14.61 cm)
Width: 8.63 inch (21.92 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.508 lbs (0.68 kg)
