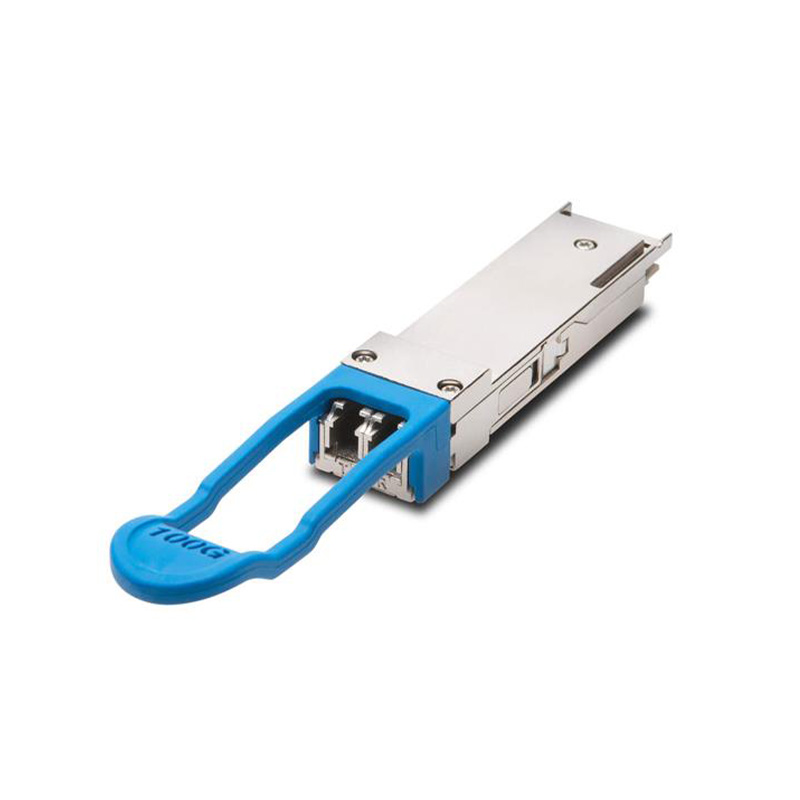

QSFP-100G-LRL4 Arista 100Gbps 100GBase-LRL4 Single-mode Transceiver Module
Out of stock
QSFP-100G-LRL4 Overview
The QSFP-100G-LRL4 is a 100Gbps QSFP28 optical transceiver designed for short to medium-distance communication over single-mode fiber, supporting distances up to 2 kilometers. It is based on the LR4 Lite architecture, which uses four separate optical lanes combined through wavelength division multiplexing to deliver high-speed data transmission while maintaining lower cost and power consumption compared to full LR4 modules.This transceiver is commonly used in data centers, enterprise networks, and campus environments, where long-range 10 km optics are not required. By using a duplex LC connector instead of MPO, it simplifies fiber infrastructure and reduces deployment complexity.
QSFP-100G-LRL4 Technical Specifications
Arista 100Gbps 100GBase-LRL4 Single-mode Fiber 2km 1310nm Duplex LC Connector QSFP28 Transceiver Module
Manufacturer: Arista
Manufacture Part Number: QSFP-100G-LRL4
Data Rate: 100Gb/s
Standard: 100GBASE-LRL4 (LR4 Lite variant)
Wavelength: 1310 nm
Connector: Duplex LC
Fiber Type: Single-Mode Fiber (SMF)
Maximum Distance: up to 2 km
Form Factor: QSFP28 (Hot-swappable)
Architecture: 4 × 25Gbps LAN WDM lanes
Power Consumption: Low power design (LR4 Lite optimized)
