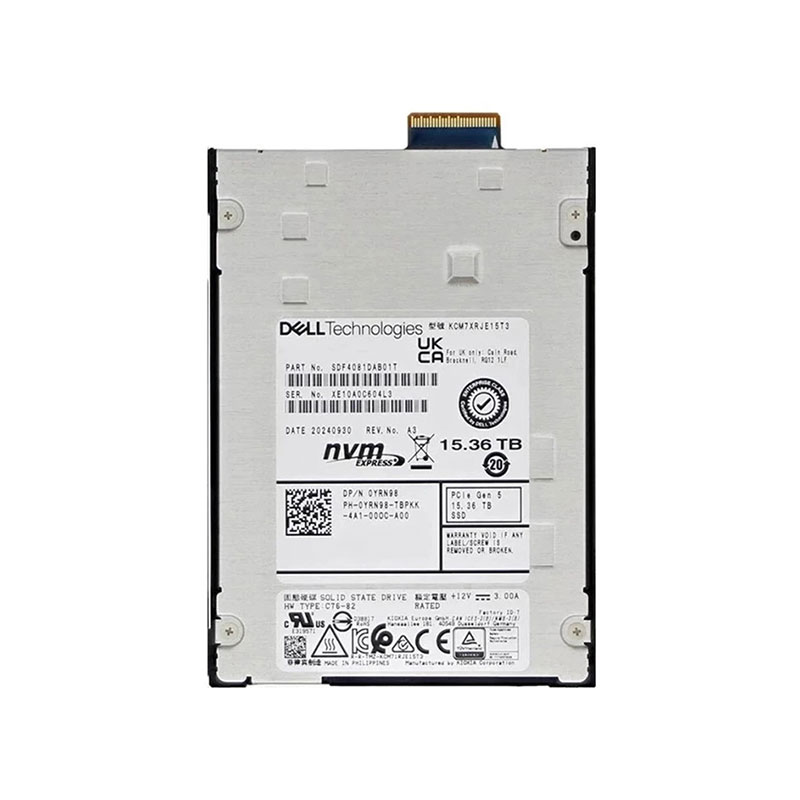

SDF4081DAB01T KIOXIA 15.36TB PCIe NVMe Gen5 E3.S EDSSF Solid State Drive
Out of stock
SDF4081DAB01T Overview
The SDF4081DAB01T (KIOXIA CM7-R Series 15.36TB) is a cutting-edge enterprise NVMe SSD built for next-generation, high-density data centers. Utilizing a high-bandwidth PCIe Gen 5.0 x4 interface, it eliminates storage bottlenecks to deliver blistering performance with sequential read speeds up to 13,000 MB/s. It features the modern, thermally efficient EDSFF E3.S form factor, allowing administrators to pack massive petabyte-scale storage into compact rack layouts. Engineered for continuous 24/7 read-intensive workloads with a 1 Drive Write Per Day (DWPD) endurance rating, this drive guarantees absolute data protection through integrated hardware-based Power Loss Protection (PLP) and comprehensive end-to-end data path protection.
SDF4081DAB01T Technical Specifications
KIOXIA 15.36TB PCIe NVMe Gen5 E3.S EDSSF Solid State Drive
General Information
Manufacturer: KIOXIA (formerly Toshiba Memory)
Product Line: CD8-S / CM7 Series Enterprise EDSFF
Part Number: SDF4081DAB01T
Product Name: KIOXIA 15.36TB NVMe PCIe Gen5 x4 E3.S EDSFF Enterprise Solid State Drive
Technical Information
Storage Capacity: 15.36TB (15,360 GB)
Memory Technology: BiCS FLASH 3D TLC Memory
Interface Type: PCIe Gen 5.0 x4 (Backward compatible with PCIe Gen 4.0 and Gen 3.0 infrastructures)
Protocol: NVMe 2.0 Specification Standard Compliance
Form Factor: EDSFF E3.S (Enterprise & Datacenter Standard Form Factor, 7.5mm thickness slot alignment)
Performance Metrics
Sustained Sequential Read Speed: Up to 13,600 MB/s (Natively utilizes PCIe Gen5 bandwidth capabilities)
Sustained Sequential Write Speed: Up to 6,500 MB/s
Random Read (4KB blocks): Up to 2,000,000 IOPS
Random Write (4KB blocks): Up to 150,000 IOPS
