SDFUS74DHB02T Kioxia 3.84tb Sas-24gbps 3d Tlc 2.5inch Fips Sed SSD
SDFUS74DHB02T Overview

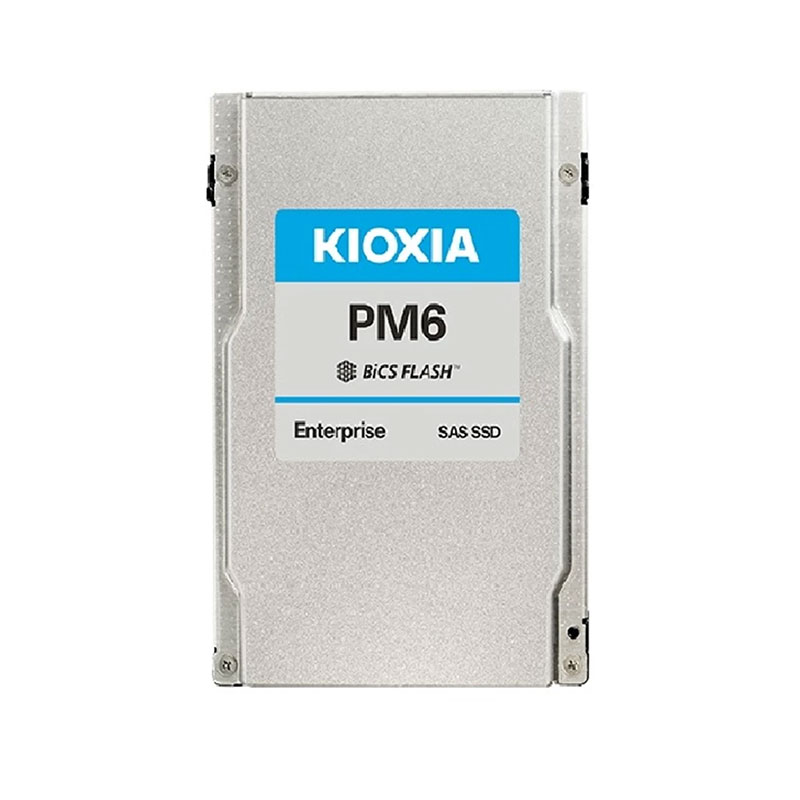

The Kioxia PM6-R 3.84TB SAS SSD (SDFUS74DHB02T) is a high-performance enterprise solid-state drive engineered for modern data centers, cloud infrastructure, content delivery networks, and read-intensive business applications. Built with advanced BiCS FLASH™ 3D TLC NAND technology, this enterprise-grade SSD delivers exceptional reliability, low latency, and consistent performance for mission-critical workloads. Featuring a cutting-edge 24Gb/s SAS-4 interface, the PM6-R Series offers significantly improved bandwidth compared to previous-generation SAS SSDs, making it an ideal solution for organizations seeking faster data access and enhanced storage efficiency.
$4,150
SDFUS74DHB02T Technical Specifications
Kioxia Pm6-r 3.84tb Sas-24gbps Read Intensive 3d Tlc 2.5inch Fips Sed Solid State Drive
Manufacturer : KIOXIA
Manufacturer Part Number : SDFUS74DHB02T
Product Series : Pm6-r
Product Type : Solid State Drive
Technical Information :
Type : Solid State Drive – Hot-plug
Capacity : 3.84tb
Nand Flash Memory Type: Bics Flash™ Tlc
Form Factor : 2.5-inch, 15 Mm Thickness
Interface Type : Sas-4
Interface Speed : 24gbps
Features : Read-intensive Endurance, Advanced Format 512e
Performance :
Sustained 128 Kib Sequential Read : 4,150 Mb/s
Sustained 128 Kib Sequential Write : 2,450 Mb/s
Sustained 4 Kib Random Read : 595k Iops
Sustained 4 Kib Random Write : 115k Iops
Mttf : 2,500,000 Hours
Dwpd : 1
Expansion & Connectivity :
Interfaces : 1 X Sas 24 Gb/s
Compatible Bays : 1 X Hot-plug – 2.5inch
Physical Characteristics :
Height : 15 Mm + 0, – 0.5 Mm
Width : 69.85 + 0.25, – 0.25 Mm
Length : 100.45 Mm Max.
Weight : 130g Max.
