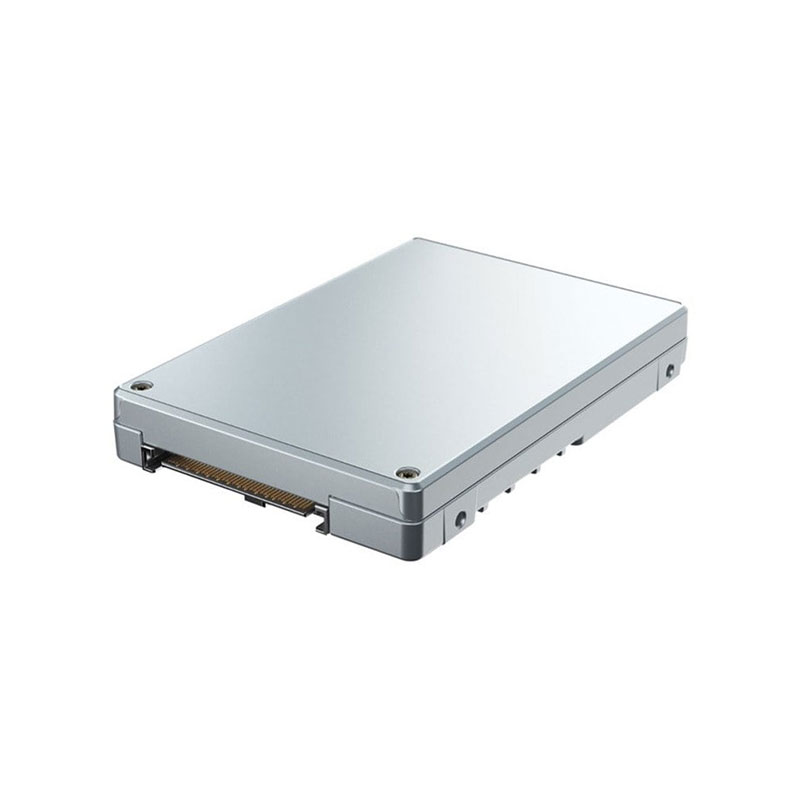

SSDPF2KX153T1N1 Solidigm 15.36TB Solid State Drive PCI-E 4.0 TLC
Out of stock
SSDPF2KX153T1N1 Overview
The SSDPF2KX153T1N1 D7-p5520 utilizes the PCI Express (PCI-E) 4.0 X4 interface, ensuring high-speed data transfer between the SSD and the motherboard. The PCI-E 4.0 specification doubles the maximum theoretical bandwidth compared to its predecessor, allowing for faster read and write speeds.
At the heart of the SSDPF2KX153T1N1 D7-p5520 lies Triple Level Cell (TLC) 3D4 technology. TLC SSDs store three bits of data per cell, providing higher storage density and cost-effectiveness. The addition of 3D4 technology means that the storage cells are stacked vertically, optimizing space utilization and enhancing overall performance.
SSDPF2KX153T1N1 Technical Specifications
Solidigm D7-p5520 15.36 Terabytes Peripheral Component Interconnect Express (PCI-E) 4.0 X4 3D4 Triple Level Cell (TLC) 2.5inch U.2 15mm Solid State Drive
Manufacturer: Solidigm
Model Number or SKU# SSDPF2KX153T1N1
Product Type: Solid State Drive
Product Name: 15.36TB
Technical Information of 15.36TB Solid State Drive
Form Factor: U.2 15mm
Lithography: 144l TLC 3d NAND
Shock: 1000 G/0.5 Msec
MTBF: 2000000 Hours
Performance
Sequential Bandwidth 100% Read (Up To): 7100 Mbps
Sequential Bandwidth 100% Write (up To): 3700 Mbps
Random Read (100% Span): 1000000 IOPS (4k Blocks)
Random Write (100% Span): 200000 IOPS (4k Blocks)
Advanced Technologies
Enhanced Power Loss Data Protection: Yes
Hardware Encryption: Aes 256 Bit
Temperature Monitoring And Logging: Yes
End-to-end Data Protection: Yes
Environmental Parameters
Min Operating Temperature: 0 °C
Max Operating Temperature: 70 °C
Shock Tolerance (operating): 1000 g @ 0.5 ms
Shock Tolerance (non-operating): 1000 g @ 0.5 ms
