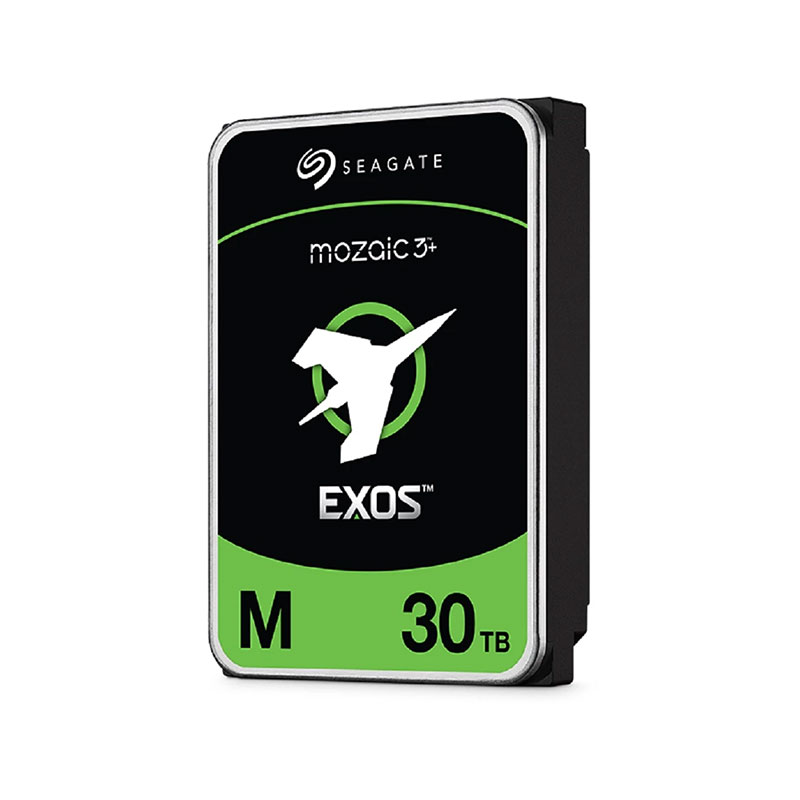

ST30000NM004K Seagate Exos M 30TB SATA 6Gb/s 7200RPM 3.5-inch Hard Drive
ST30000NM004K Overview
The Seagate Exos Mozaic 3+ 30TB (Model: ST30000NM004K) marks a historic milestone in enterprise storage, offering unprecedented capacity for the world’s most demanding data centers. Powered by Seagate’s revolutionary HAMR (Heat-Assisted Magnetic Recording) technology, the Exos Mozaic 3+ platform achieves a massive 30TB of raw storage in a standard 3.5-inch form factor. This breakthrough allows hyperscale cloud providers and enterprise IT managers to drastically increase storage density per rack while significantly lowering the Total Cost of Ownership (TCO) through reduced power, cooling, and floor space requirements. Featuring the 10th-generation Helium-sealed design, this drive ensures peak operational efficiency and thermal stability for 24/7 mission-critical environments.
$1,149
ST30000NM004K Technical Specifications
Seagate Exos M 30TB SATA 6Gb/s 7200RPM 3.5-inch Hard Drive
Manufacturer: Seagate
Manufacture Part Number: ST30000NM004K
Series: Exos Mozaic 3+ (Exos X30 Series)
Storage Capacity: 30 Terabytes (30TB)
Interface Type: SATA 6Gb/s
Form Factor: 3.5-Inch LFF
Recording Technology: HAMR (Heat-Assisted Magnetic Recording)
Enclosure Design: Helium-sealed
Sector Format: 512e / 4Kn
Performance Metrics
Spindle Rotation Speed: 7200 RPM
Data Buffer (Cache): 512 MB (or higher per series spec)
Sustained Transfer Rate: Up to 298 MB/s (Maximum)
Interface Transfer Rate: 6.0 Gb/s
Average Latency: 4.16 ms
Reliability & Integrity
MTBF (Mean Time Between Failure): 2,500,000 Hours
AFR (Annualized Failure Rate): 0.35%
Workload Rating: Up to 550TB per Year
Load/Unload Cycles: 600,000
Security Feature: SE (Standard Model)
Power & Environmental
Operating Power (Typical): 10.5 Watts
Idle Power (Typical): 6.3 Watts
Operating Temperature: 5C to 60C
