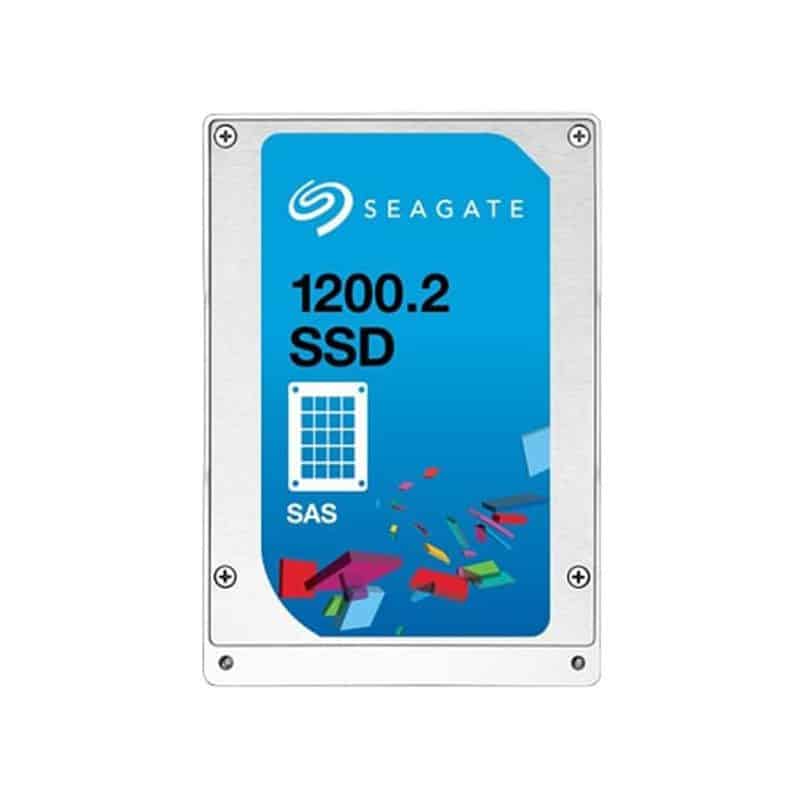

ST3840FM0003 Seagate 1200.2 Series 3.84TB eMLC SAS 12Gbps SSD
ST3840FM0003 Overview
The Seagate ST3840FM0003 (Nytro 1200.2 series) is a 3.84 TB enterprise 2.5-inch, 15 mm SAS solid-state drive built for read-intensive server workloads: it uses enterprise MLC (eMLC) flash in a light-endurance configuration and a dual-port 12 Gb/s SAS interface for high availability and redundant I/O paths, making it suitable for virtualization, caching, and database acceleration. It delivers very high sustained throughput (sequential reads approaching ~1.8â1.9 GB/s and sequential writes in the ~770â800 MB/s range) and strong random performance (random reads in the ~180kâ190k IOPS class and random writes around ~30kâ38k IOPS at typical queue depths), with average latencies optimized for consistent low-latency access.
$3,320
ST3840FM0003 Technical Specifications
Seagate 1200.2 Series 3.84TB eMLC SAS 12Gbps
GENERAL INFORMATION :
Manufacturer : Seagate
Manufacturer Model : ST3840FM0003
Product Line : 1200.2 SSD
Product Type : Solid State Drive
Product Name : 1200.2 SSD 3.84TB SAS-12GBITS EMLC 2.5 Inch Solid State Drive
KEY FEATURES :
Storage Capacity : 3.84 TB
Interface : Dual SAS-12GBPS
Form Factor : 2.5 INCH X 15 MM
NAND Flash Type : EMLC
Annualized Failure Rate (AFR) : 0.35%
PERFORMANCE :
Maximum Burst Transfer Rate : 1200 MBPS
Peak Sequential 128KB Read : 1750 MBPS
Peak Sequential 128KB Write : 750 MBPS
Peak 4kb Random Read : 190000 IOPS
Peak 4kb Random Write : 35000 IOPS
PHYSICAL :
Dimensions (H X W X L) : 15 X 70.1 X 100.45
WEIGHT : 165 GPOWEREDGE R715
Power edge R720
Power edge R815
Power edge R820
Power edge R920
Power edge R930
Power edge T320
