UC3400 Synology 12-Bay Active-Active Storage
UC3400 Overview

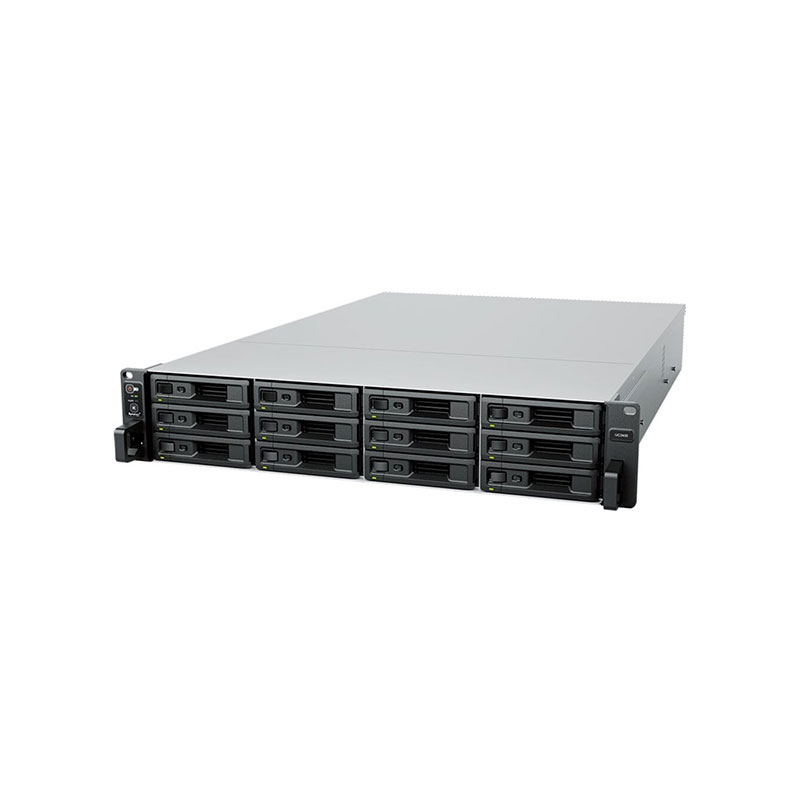

The UC3400 from Synology is an enterprise-class, 2U rackmount storage system featuring 12 hot-swappable drive bays engineered for high-availability SAN environments and mission-critical virtualization. It utilizes an active-active dual-controller architecture that operates simultaneously to deliver non-disruptive, instant failover protection if one unit goes offline. Each individual controller is powered by an 8-core Intel Xeon processor and equipped with 8GB of ECC memory, which is expandable up to 64GB. For networking, it features built-in 1GbE and 10GbE ports alongside PCIe slots for upgrading to high-speed 10/25GbE network cards or Fibre Channel HBAs. Designed for enterprise scalability, the system supports 3.5-inch and 2.5-inch SAS HDDs or SSDs and can expand up to 36 total drive bays by daisy-chaining two RXD1219gl expansion units.
$10,499
UC3400 Technical Specifications
Synology 12-Bay Active-Active Storage
Brand/Series: Synology UC Series (Unified Controller)
Form Factor: 2U Rackmount
Device Type: Enterprise High-Availability Storage Area Network (SAN)
Architecture: Active-Active Dual Controller (Ensures non-disruptive iSCSI/Fibre Channel services with automatic hardware failover)
Drive Bays: 12x 3.5-inch or 2.5-inch SAS interface bays (Expandable up to 36 drives via FX2421 expansion units)
Processor (Per Controller): Intel Xeon D-1541 8-Core 2.1GHz (Turbo up to 2.7GHz)
Memory (Per Controller): 8GB DDR4 ECC UDIMM (Expandable up to 64GB)
Protocol Support: Optimized exclusively for block-level storage via iSCSI and Fibre Channel (FCP)
Virtualization Ready: Fully certified for VMware vSphere, Microsoft Hyper-V, Citrix XenServer, and OpenStack
Best For: Mission-critical virtualization infrastructure, high-availability cluster databases, and enterprise environments requiring zero-downtime block storage.
