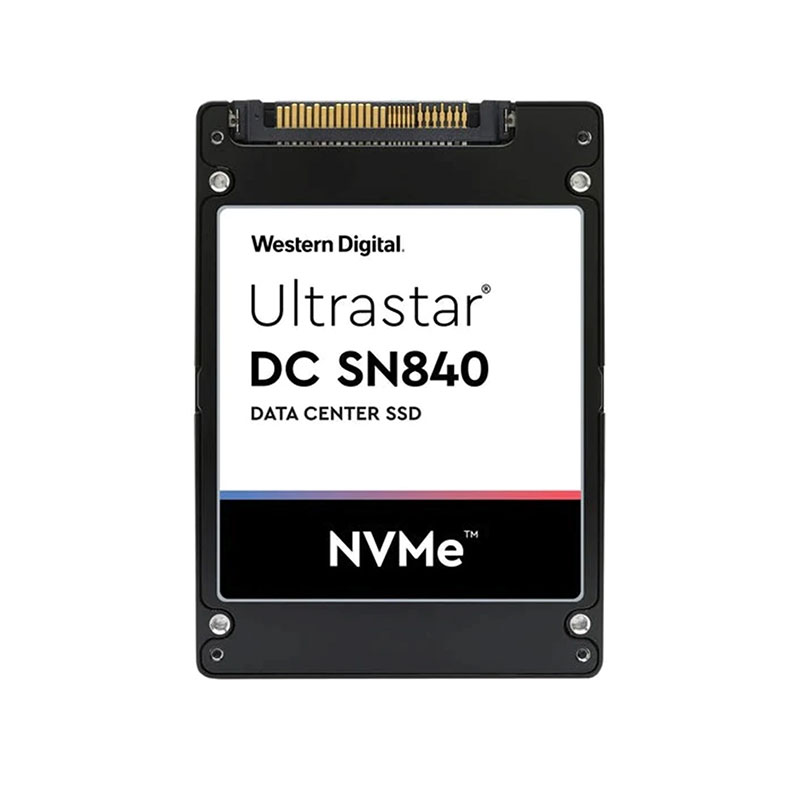

WUS4BA176DSP3X4 Western Digital 7.68tb Nvme Dual Port Pcie 2.5inch SSD
WUS4BA176DSP3X4 Overview
The Western Digital Ultrastar DC SN840 WUS4BA176DSP3X4 7.68TB NVMe SSD is a high-performance enterprise-grade storage solution designed for data centers that demand speed, reliability, and scalability. Built on PCIe 3.1 NVMe architecture with dual-port capability, it supports flexible configurations of x4 or x2 lanes, making it suitable for mission-critical workloads where redundancy and continuous uptime are essential. With a 2.5-inch U.2 (15mm) form factor, this drive easily integrates into modern server environments while maintaining high-density storage efficiency.
$2,200
WUS4BA176DSP3X4 Technical Specifications
Western Digital Ultrastar Dc Sn840 7.68tb Nvme Dual Port Pcie 3.1 1×4 Or 2×2 U.2 2.5inch 15mm Tcg Ruby Solid State Drive
Brand : Western Digital
Model : WUS4BA176DSP3X4
Product Line : Ultrastar Dc Sn840
Product Type : Solid State Drive
Product Name : Ultrastar Dc Sn840 7.68tb Solid State Drive
Best Fit Applications :
High Performance Computing (hpc)
High Availability Storage Arrays
All Mixed Use Workloads
Artificial Intelligence/machine Learning
Real-time Analytics
Pattern Recognition
Virtualization
Key Features :
Storage Capacity : 7.68 Tb
Form Factor : U.2 2.5-inch, 15mm
Flash Memory Technology : Western Digital 96-layer 3d Tlc Nand
Performance :
Read Throughput (max, Seq 64kib) : 3470 Mbps
Write Throughput (max, Seq 64kib) : 3200 Mbps
Read Iops (max, Rnd 4kib) : 780k Iops
Write Iops (max, Rnd 4kib) : 160k Iops
Mixed Iops (max, 70/30 R/w, 4kib) : 373k Iops
Physical :
Z-height : 15 Mm
Width : 69.85 Mm
Length : 100.45 Mm
Weight : 180 G
