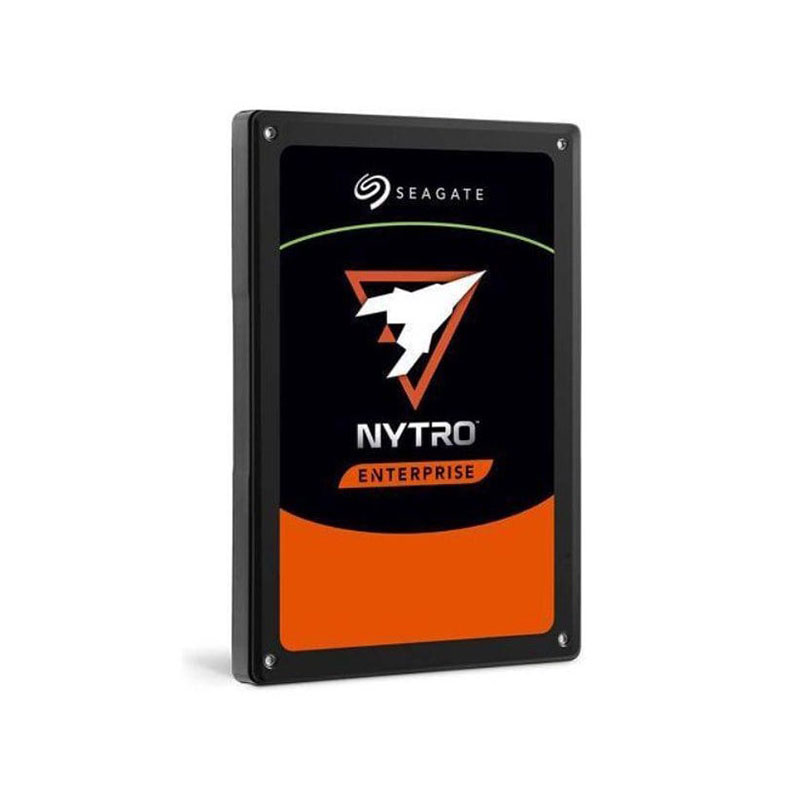

XS3840SE70045 Seagate 3.84TB SAS 12Gbps Solid State Drive (SSD)


XS3840SE70045 Overview

Form Factor: The XS3840SE70045 has a 2.5-inch small form factor (SFF), which means it is designed to fit into compact server and storage systems. The drive is also compatible with 3.5-inch drive bays using an adapter.
Physical Dimensions: The drive has a height of 15mm, a width of 69.85mm, and a depth of 100.45mm. These dimensions are standard for 2.5-inch SAS solid-state drives.
Operating Temperature and Power Consumption
Operating Temperature: The drive has an operating temperature range of 0°C to 70°C. This means it can function effectively in a wide range of temperature conditions, making it suitable for use in data centers with varying climate controls.

$1,395

XS3840SE70045 Technical Specifications

Seagate Nytro 3350 Series 3.84TB SAS 12Gbps Scaled Endurance 2.5-inch Internal Solid State Drive (SSD)

Manufacturer : Seagate
Manufacturer Part Number : XS3840SE70045
Product Line : Nytro 3350
Product Type : Solid State Drive
Key Features
Storage Capacity : 3.84TB
Interface : SAS-12GBPS
Form Factor : 2.5 Inch X 15 Mm
Nand Flash Type : 3d ETLC
Performance—single Port 12GBPS
Sequential Read Sustained, 128KB : 1100 MBPS
Sequential Write Sustained, 128KB : 1050 MBPS
Random Read Sustained, 4KB : 195,000 IOPS
Random Write Sustained, 4KB : 80,000 IOPS
Random 30% Write Sustained, 4KB : 150,000 IOPS
Performance—dual Port 12GBPS
Sequential Read Sustained, 128KB : 2200 MBPS
Sequential Write Sustained, 128KB : 1800 MBPS
Random Read Sustained, 4KB : 250000 IOPS
Random Write Sustained, 4KB : 80000 IOPS
Random 30% Write Sustained, 4KB : 170,000 IOPS
Dimensions & Weight
Height: 0.63 inch
Width: 3.10 inch
Depth: 5.45 inch
Weight: 1.50 lbs
