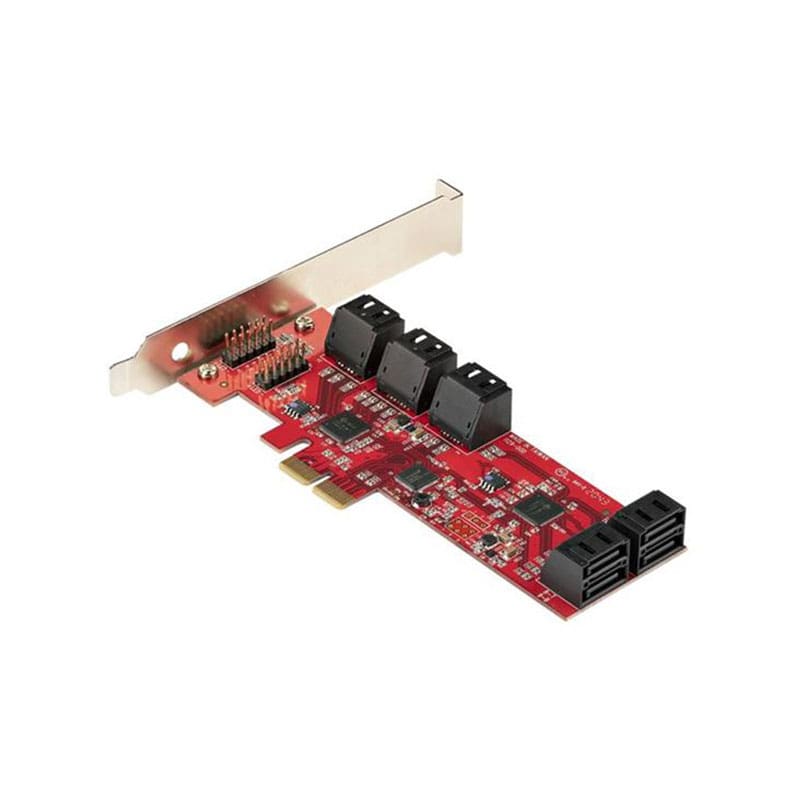

10P6G-PCIE-SATA-CARD StarTech.com SATA PCIe Card, 10 Ports SATA
10P6G-PCIE-SATA-CARD Overview
This 10-port SATA III (6Gbps) controller enables you to add 10 SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot. The card supports SATA III and PCI-Express 2.0 Specifications.
$109
10P6G-PCIE-SATA-CARD Technical Specifications
StarTech.com SATA PCIe Card, 10 Ports SATA Expansion Card, 6Gbps PCI Express SATA Card
Brand: StarTech.com
Product Line: StarTech.com
Manufacturer: StarTech.com
Processor
Processor Brand: ASMedia
Processor Number: ASM10621
Storage
Data Transfer Rate: 6 Gbit/s
Controller Interface: SATA 6Gb/s
Connectivity
Interface Provided: 10 x SATA 6Gb/s – SATA (internal)
Power
Power Device Type: None
Technical Information
Form Factor (Storage Controller): Plug-in card
Host Bus Interface: PCIe 2.0 x2
Max Operating Temperature: 85 degree Celsius
Min Operating Temperature: 0 degree Celsius
Operating Humidity: 20 – 80%
Supported Devices: Hard drive, Solid state drive
Product Information
Low Profile: Low profile
Packaged Quantity: 1
Product Type: Storage controller
Included Items
Included Accessories: Low-profile bracket
Dimensions & Weight
Height: 13.9 centimetre
Weight: 75 gram
Width: 1.6 centimetre
Depth: 5.4 centimetre
