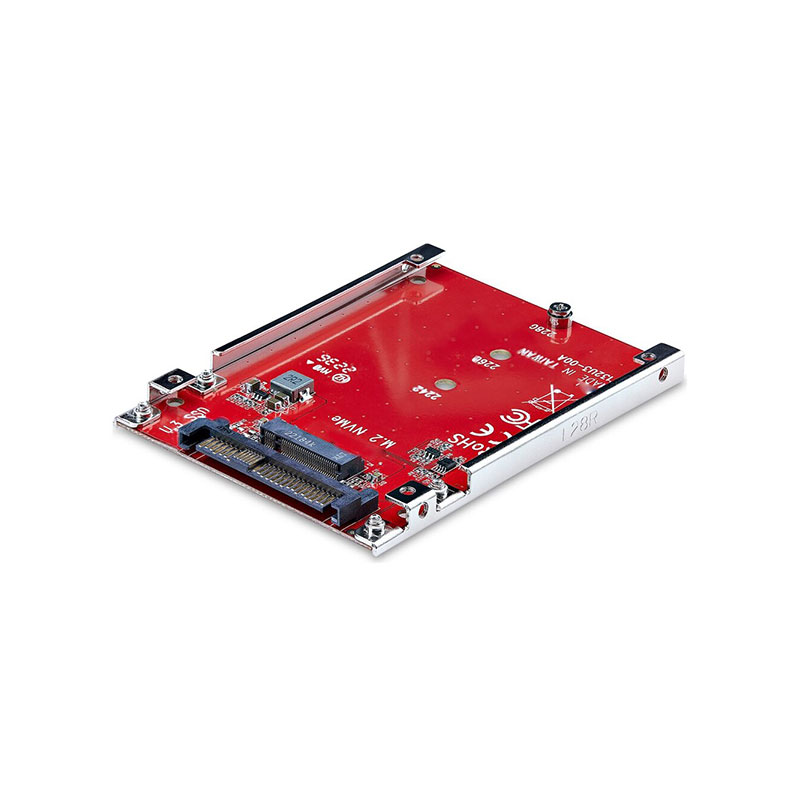

1M25-U3-M2-ADAPTER StarTech PCIe to 2.5″ U.3 M.2 NVMe Solid State Drives

Compare

1M25-U3-M2-ADAPTER Overview

The StarTech is a TAA-compliant PCIe M.2 to 2.5-inch U.3 host adapter engineered to integrate an M.2 NVMe SSD seamlessly into an enterprise-grade U.3 (SFF-TA-1001) drive bay or server backplane. Supporting PCIe Gen 4 and lower interfaces, this converter changes the physical form factor of 2242, 2260, or 2280 M.2 drives without sacrificing bandwidth, utilizing a chipset-free architecture to preserve pure, native read and write speeds. Its open-frame design promotes superior airflow and easily accommodates larger M.2 heatsinks, while its OS-independent, driver-free configuration simplifies deployment across Windows, macOS, and Linux systems. Note that this high-performance adapter is strictly designed for NVMe-to-U.3 ecosystems and is not compatible with standard U.2, SATA, or SAS host controllers.

$43

1M25-U3-M2-ADAPTER Technical Specifications

StarTech PCIe to 2.5″ U.3 Host Adapter Converter for M.2 NVMe Solid State Drives (TAA Compliant)

General Information:
Manufacturer: StarTech.com
Product Name: PCIe M.2 Drive to 2.5″ U.3 Host Adapter Converter
Technical Information:
Storage Capacity: Fits 1x M.2 NVMe SSD (Sizes 2230, 2242, 2260, 2280)
Memory Technology: NVMe PCIe Solid State Drive Adapter
Interface Type: PCIe Gen 4.0 x4 (U.3 Host Interface)
Form Factor: 2.5-inch Drive Profile (15mm Height)
Bus Speed: PCIe Gen 4.0 (Up to 64 Gbps)
Drive Support: M-Key M.2 NVMe SSDs only (SATA M.2 not supported)
Hot-Swap Support: Yes (When used with U.3/U.2 compatible backplanes)
Enclosure Material: Aluminum Housing for Passive Cooling
Operating Temperature: 0°C to 55°C (32°F to 131°F)
Regulatory Compliance: TAA Compliant (GSA Schedule)
Platform Support: Enterprise Servers, Data Centers, and U.3/U.2 Storage Bays

GTIN: 065030900744 SKU: 1M25-U3-M2-ADAPTER Categories: , Tags: , , , , , , , Brand:
