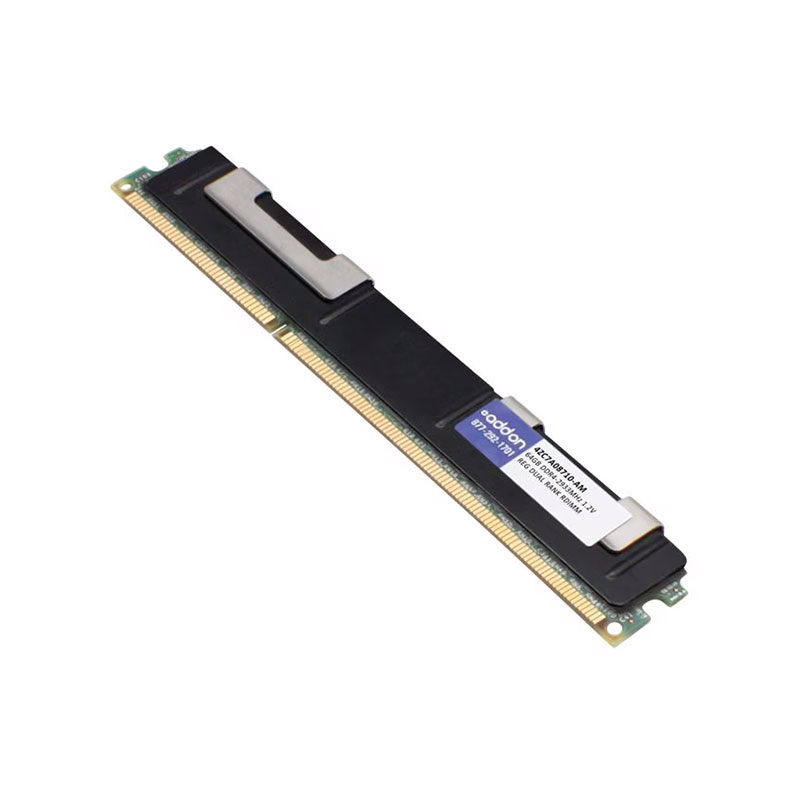

4ZC7A08710-AM AddOn 64GB DDR4-2933MHz DIMM Memory Module
4ZC7A08710-AM Overview
The Axiom 4ZC7A08710-AM is a high-density 64GB DDR4 memory module specifically engineered to serve as a 100% compatible equivalent for Lenovo ThinkSystem server environments. Operating at 2933MHz (PC4-23400), it delivers the massive bandwidth required for the most demanding enterprise workloads, such as large-scale virtualization, high-performance computing (HPC), and complex database management.
A defining characteristic of this module is its Registered ECC (RDIMM) architecture. By utilizing an onboard register to buffer command and address signals, it significantly reduces the electrical load on the system’s memory controller.
$2,535
4ZC7A08710-AM Technical Specifications
AddOn 64GB PC4-23400 DDR4-2933MHz Registered ECC CL21 288-Pin DIMM 1.2V Dual Rank Memory Module
Manufacturer: AddOn
Part Number: 4ZC7A08710-AM
Capacity: 64 GB
Memory Type: DDR4 SDRAM
Module Type: 288-Pin RDIMM (Registered DIMM)
Bus Speed: 2933 MHz (PC4-23400)
Data Transfer Rate: 23.4 GB/s
CAS Latency: CL21
Error Correction: ECC (Error Correcting Code)
Signal Processing: Registered
Rank Architecture: Dual Rank (2Rx4)
Operating Voltage: 1.2V
Form Factor: Standard DIMM Height
Contact Pins: 288-Pin Gold-Plated
Standard: JEDEC compliant
