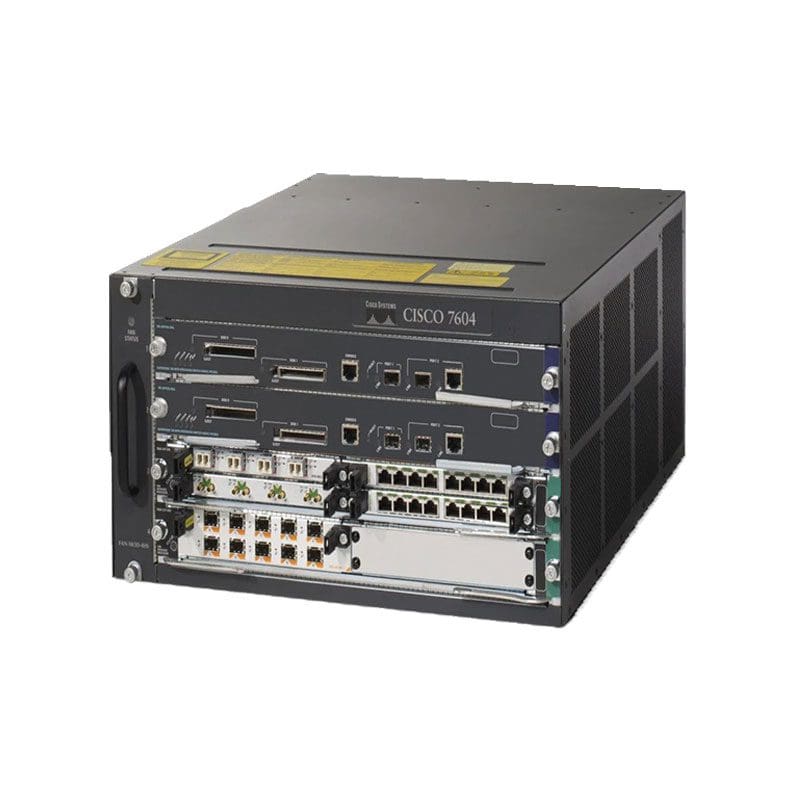

Refurbished 7604-RSP720C-R Cisco 7604 Router Chassis Bundle

Refurbished 7604-RSP720C-R Technical Specifications

Cisco 7604 Router Chassis Bundle

General
Device Type: Router – with 2 x Cisco 7604 Series Route Switch Processor 720 with PFC-3C
Enclosure Type: Desktop – modular – 5U
Product Type: Router Chassis
Router Bundle
Connectivity Technology: Wired
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Performance IPv4 routing: 400 Mbps ¦ IPv6 routing: 200 Mbps ¦ Switching capacity: 720 Gbps
Capacity IPv4 routes: 256000 ¦ IPv6 routes: 128000 ¦ NetFlow entries: 128000 ¦ ACL rules: 128000
Network / Transport Protocol: TCP/IP, ICMP/IP
Routing Protocol: OSPF, RIP, BGP-4, IS-IS, IGMP, PIM-SM, PIM-DM
Features: Layer 3 switching, layer 2 switching, dynamic IP address assignment, DHCP support, MPLS support, VLAN support, IGMP snooping, traffic shaping, DoS attack prevention, Access Control List (ACL) support, Quality of Service (QoS)
Compliant Standards IEEE: 802.1x, NEBS level 3, FCC Class A certified, CISPR 22 Class A, EN 60950, EN 61000-3-2, VCCI Class A ITE, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, AS/NZ 3548 Class A, CSA C22.2 No. 60950-00, ICES-003 Class A
Processor: PowerPC 1.2 GHz
RAM: 2 GB (installed) / 6 GB (max)
Expansion / Connectivity
Interfaces: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Management: 1 x console – RJ-45 ¦ 2 x SFP (mini-GBIC)
Expansion Slots: 4 (total) / 2 (free) x expansion slot ¦ 3 (total) / 2 (free) x CompactFlash Card – type II
Installed Modules: Qty (Max) 2 (installed) / 4 (max)
Power
Power Device Internal power supply – hot-plug
Power Redundancy Yes
Installed Qty 2 (installed) / 2 (max)
Dimensions & Weight
Width 17.5 in
Depth 21.7 in
Height 8.7 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 – 85%
