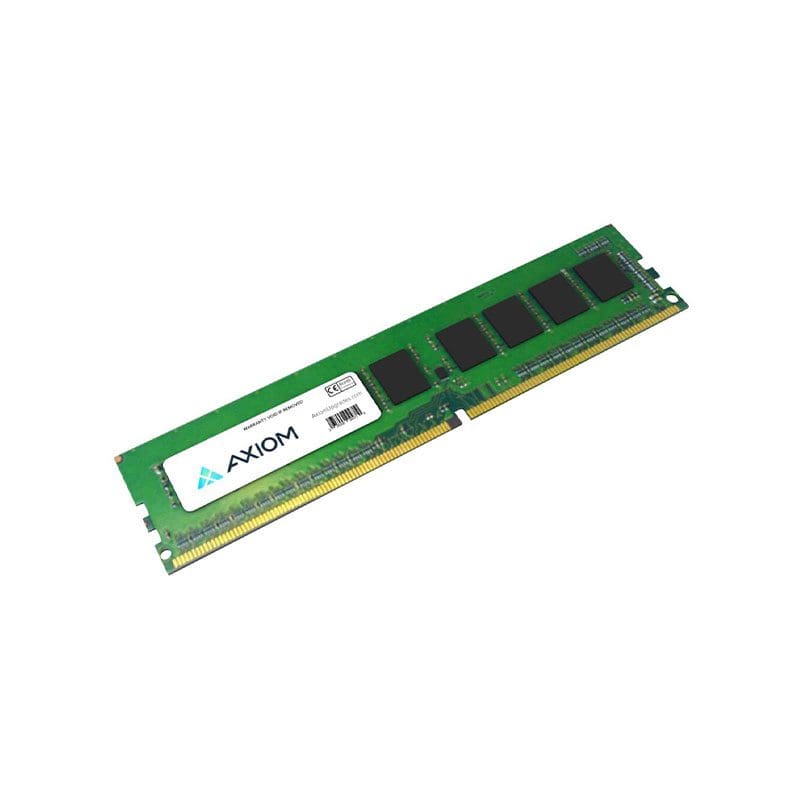

815100-B21-AX Axiom AX DDR4 module 32GB
815100-B21-AX Overview
The Axiom 815100-B21-AX is a high-capacity 32GB DDR4 memory module specifically engineered to serve as a 100% compatible equivalent for HPE ProLiant and Synergy server environments. Operating at 2666MHz (PC4-21300), it provides the robust bandwidth and stability required for essential enterprise workloads, including server virtualization, cloud computing, and mid-range database management.
A defining characteristic of this module is its Registered ECC (RDIMM) architecture. By utilizing an onboard register to buffer command and address signals, it significantly reduces the electrical load on the system’s memory controller.
$670
815100-B21-AX Technical Specification
Axiom AX DDR4 module 32GB
Type :DRAM
Product Type :Memory module
Form Factor :DIMM 288-pin
Technology :DDR4 SDRAM
Storage Capacity :32 GB, 32GB
Registered or Buffered :Registered
Data Integrity Check :ECC Registered
Module Configuration :4096 x 72
Chips Organization :2048 x 4
Memory Speed :2666 megahertz
Memory Specification Compliance :PC4-21300
Supply Voltage :1.2 volt
