AA783423-AX Axiom Upgrades 64GB DDR4-3200
AA783423-AX Overview

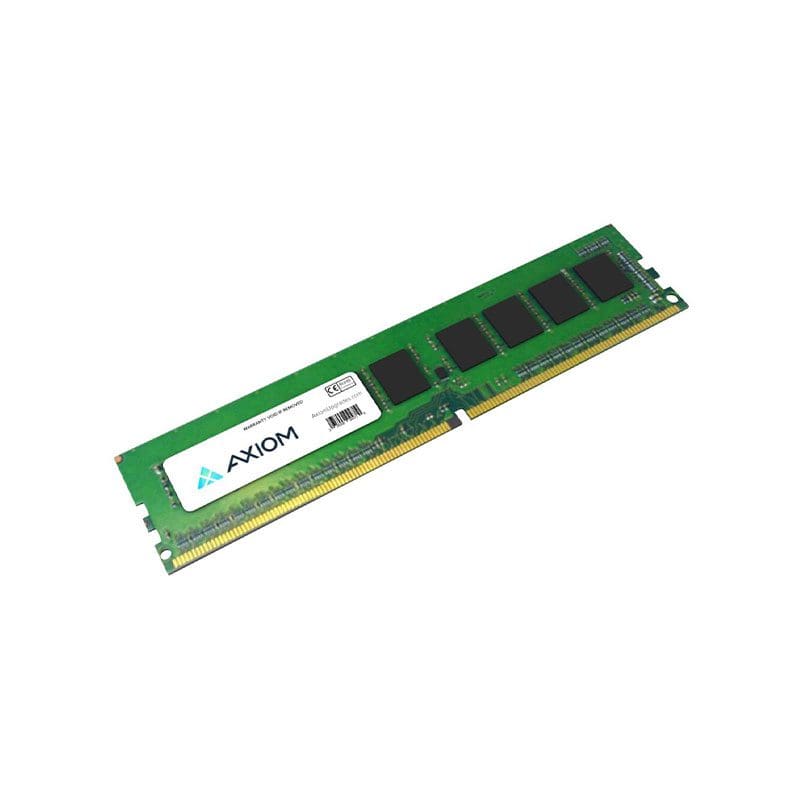

The Axiom AA783423-AX is an enterprise-class 64GB DDR4 memory module from Axiom’s System-Specific Dedicated Memory line. Operating at a native speed of 3200MHz (PC4-25600), it provides an ultra-high-capacity, high-bandwidth foundation optimized to support demanding virtualization layers, intensive database management, and heavy enterprise application workloads.
A defining characteristic of this module is its Registered ECC (RDIMM) architecture packaged into an industry-standard 288-pin server form factor. Equipped with an onboard hardware register to buffer command and address signals, it isolates the electrical load from the processor’s memory controller. This configuration is an absolute structural necessity for stabilizing high-density memory pools.
$2,075
AA783423-AX Technical Specification
Axiom Upgrades 64GB DDR4-3200
Product Name 64GB DDR4-3200 ECC Rdimm for Dell Servers
Manufacturer Part Number AA783423-AX
Product Type RAM Module
Memory Voltage 1.20 V
Memory Standard DDR4-3200/PC4-25600
Memory Technology DDR4 SDRAM
CAS Latency CL22
Memory Size 64 GB
Form Factor DIMM
Memory Speed 3200 MHz
Device Supported Server
Error Checking ECC
Number of Pins 288-pin
Signal Processing Registered
Environmentally Friendly Yes
