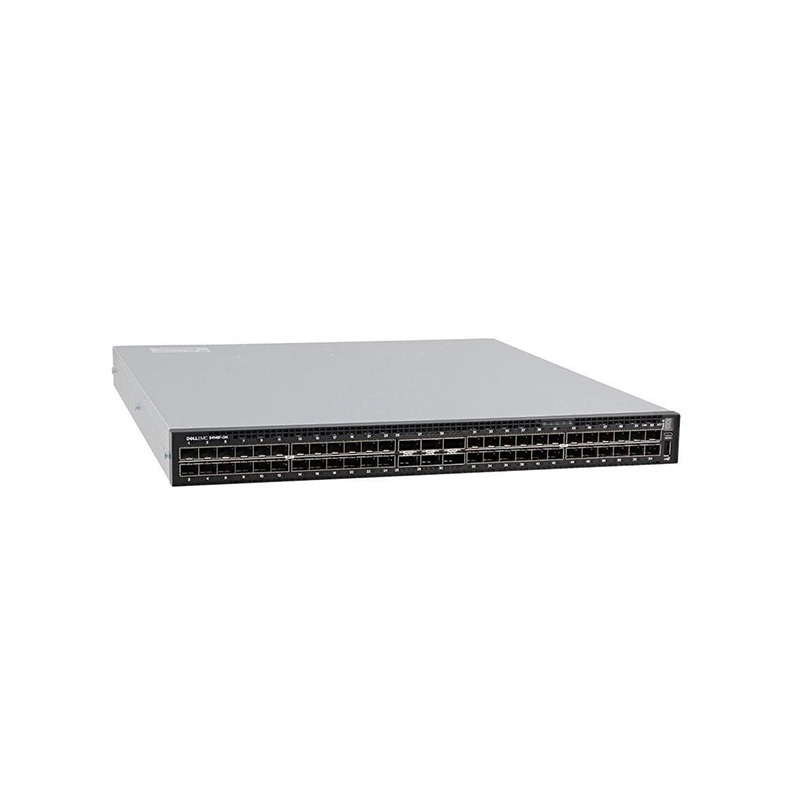

CNX3X S4148F-ON Dell Networking 48Port Layer 3 Switch
Out of stock
CNX3X S4148F-ON Overview
The Dell Networking is a high-performance Layer 3 data center switch designed for modern enterprise and cloud environments. It features 48 high-speed SFP+ ports that support multi-rate connectivity, making it ideal for server access in top-of-rack deployments. The switch is equipped with flexible uplink options, including 100GbE QSFP28 and 40GbE QSFP+ ports, allowing seamless integration into spine-leaf architectures and high-bandwidth aggregation layers. Built on Dell’s open networking approach, the supports OS10 and ONIE, enabling flexibility in choosing network operating systems and simplifying automation. With a powerful switching capacity of up to 3.2 Tbps and ultra-low latency, it ensures efficient handling of east-west traffic in virtualized and cloud data centers.
CNX3X S4148F-ON Technical Specifications
Dell Networking 48Port Layer 3 Switch
Manufacturer: Dell
Manufacture Part Number: CNX3X S4148F-ON
Switch Type: Layer 2/3 Data Center Switch
Ports: 48 × 10GbE SFP+
Uplink Ports: 4 × 100GbE QSFP28 and 2 × 40GbE QSFP+
Management Ports: 1 × RJ-45 console / USB
Stacking Support: No traditional stacking
PoE Support: No
PoE Budget: N/A
Switching Capacity: up to 3.2 Tbps
Forwarding Rate: up to 2.38 Bpps
MAC Address Table: up to 272K entries
Latency: as low as ~450 ns (cut-through)
VLAN Support: up to 4096 VLANs
