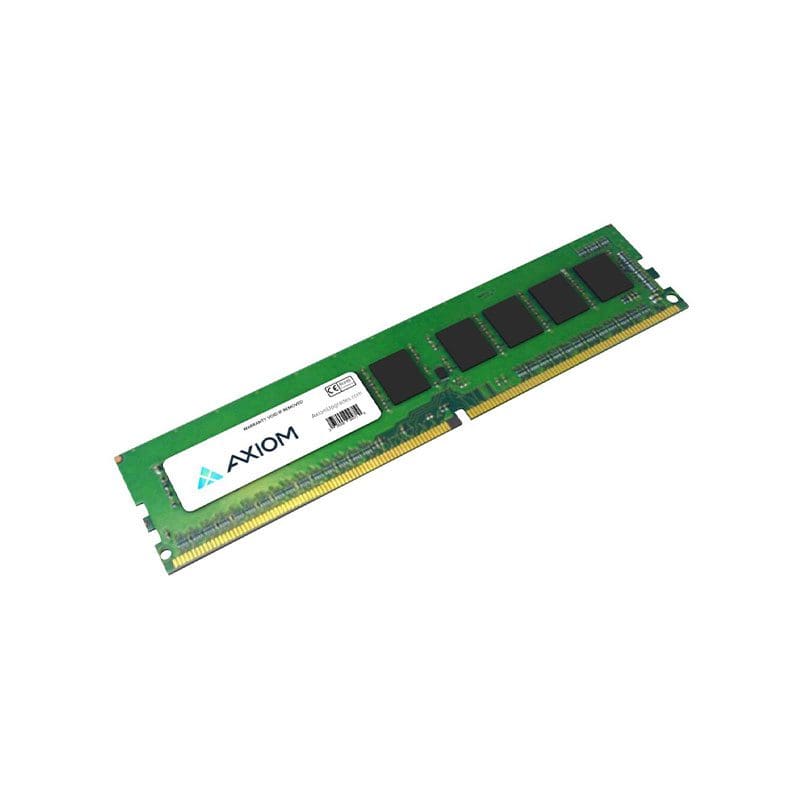

D4EC-2666-8G-AX Axiom Upgrades 8GB DDR4 ECC UDIMM
D4EC-2666-8G-AX Overview
The Axiom D4EC-2666-8G-AX is a high-reliability 8GB DDR4 memory module specifically engineered to serve as a 100% compatible equivalent for Synology NAS arrays, enterprise networking appliances, and entry-level server tower systems. Operating at 2666MHz (PC4-21300), it provides a stable and efficient data foundation for high-availability storage configurations, continuous file backups, and small-business network infrastructure.
A defining characteristic of this module is its Unbuffered ECC (UDIMM) architecture. It integrates Error Correction Code (ECC) technology to protect data integrity at the hardware level, but omits the register/buffer found in larger server DIMMs. This configuration makes it a strict technical requirement for specialized hardware environments.
$206
D4EC-2666-8G-AX Technical Specification
Axiom Upgrades 8GB DDR4 ECC UDIMM
Product Name 8GB DDR4 ECC UDIMM Synology D4EC-2666-8G
Manufacturer Part Number D4EC-2666-8G-AX
Product Type RAM Module
Memory Voltage 1.20 V
Memory Standard DDR4-2666/PC4-21300
Memory Technology DDR4 SDRAM
CAS Latency CL19
Memory Size 8 GB
Form Factor DIMM
Memory Speed 2666 MHz
Device Supported NAS Server
Error Checking ECC
Number of Pins 288-pin
