MB996SP-6SB Icy Dock ToughArmor 6×2.5″ SATA Hard Disk Drive Hot Swap Mobile Rack Black
MB996SP-6SB Overview

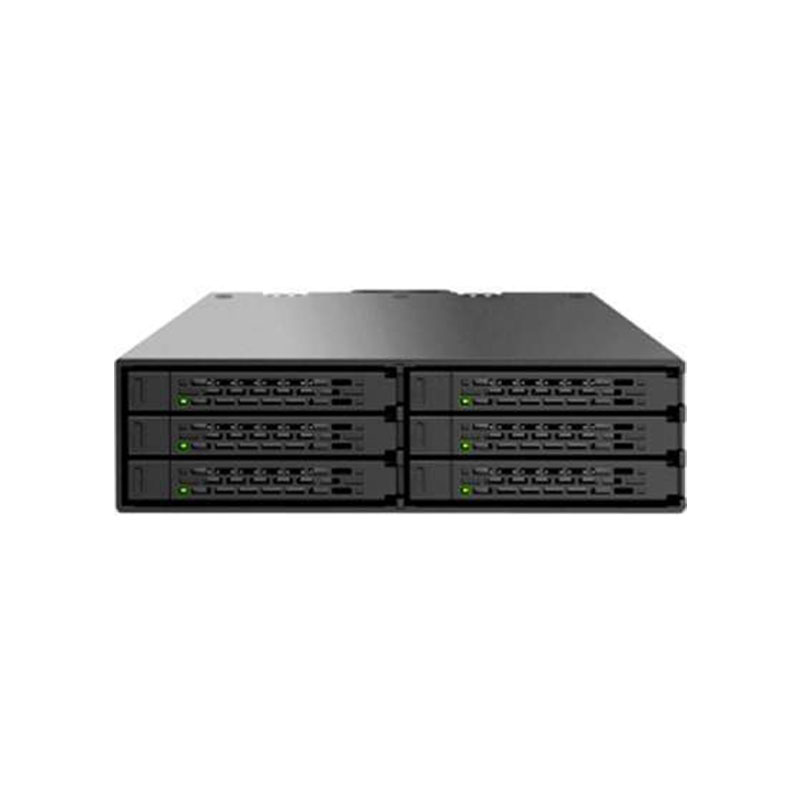

The MB996SP-6SB (ToughArmor) from Icy Dock is a heavy-duty, full-metal 6-bay hot-swap mobile rack designed to fit up to six 2.5-inch SATA HDDs or SSDs into a single standard 5.25-inch external drive bay. It utilizes standard SATA 6Gbps interfaces and features a pass-through power system driven by dual 4-pin Molex connectors, maximizing cable management efficiency. Built for rugged industrial, military, and medical systems, the enclosure features an all-metal construction for superior heat dissipation, a user-adjustable 40mm cooling fan, and individual drive LED indicators. Each drive is secured in an Ez-Slide Micro tray with a specialized latch mechanism to prevent accidental drive ejections while allowing for rapid, toolless hot-swapping during continuous system operation.
$199
MB996SP-6SB Technical Specifications
Icy Dock ToughArmor 6×2.5″ SATA Hard Disk Drive Hot Swap Mobile Rack Black
Brand/Series: Icy Dock ToughArmor
Form Factor: Single 5.25″ Device Bay
Device Type: 6-Bay 2.5″ Hot-Swap Mobile Rack
Drive Support: 6x 2.5″ SATA/SAS HDDs or SSDs (7mm to 9.5mm height)
Interface: SATA III / SAS (Up to 6Gbps per bay)
Power: 2x 4-pin Molex connectors
Cooling: 1x 40mm rear fan with speed control switch
Material: Full-metal heavy-duty construction
Best For: Compact workstations and high-density servers requiring space-saving RAID arrays or frequent hot-swapping.
