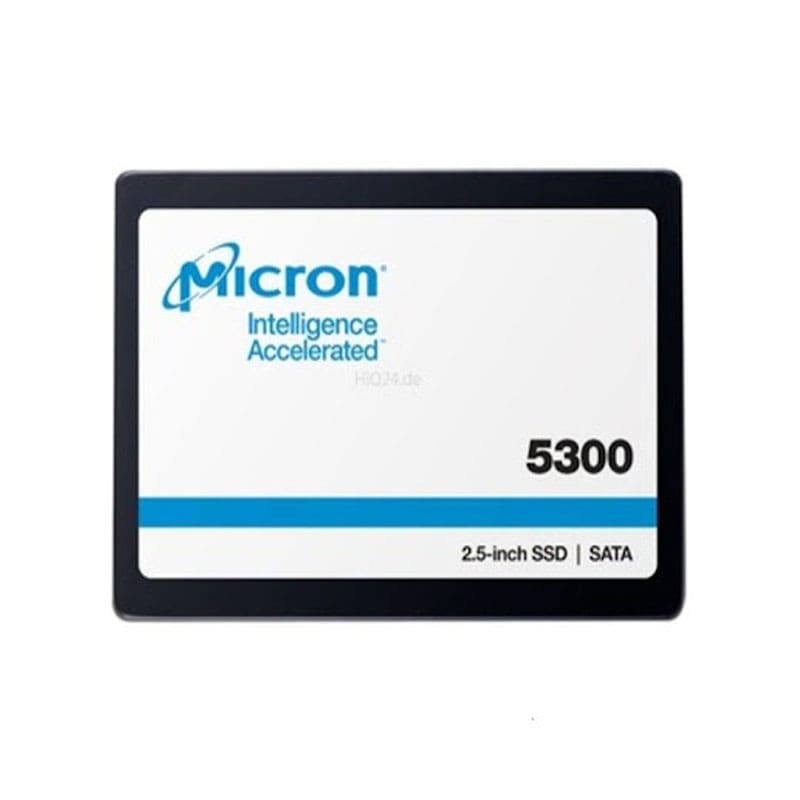

MTFDDAK7T6TDS-1AW1ZA Micron 7.68TB 5300 Pro SSD

MTFDDAK7T6TDS-1AW1ZA  Technical Specifications

Micron 7.68TB 5300 Pro 6Gb/s SATA SSD

Manufacturer: Micron
Product Type: SATA-6GBPS 7.68TB
Product Name: Solid State Drive (SSD)
Technical Information of 7.68TB Solid State Drive
SSD Class: Server/Enterprise
SSD Form Factor: 2.5 Inch
SSD Host Interface: SATA 3.0 (6 GB/s)
Model/Series/Type: 5300P (PRO)

Drive Performance for 7.68TB/7680GB SSD
Sequential read (128KB transfer) 540 MB/s
Sequential write (128KB transfer) 520 MB/s
Random read (4KB transfer) 95,000 IOPS
Random write (4KB transfer) 11,000 IOPS
Random 70/30 R/W (4KB transfer) 32,000 IOPS
READ latency (99.9%) 175 µs
WRITE latency (99.9%) 650 µs
READ latency (99.999%) 1000 µs
WRITE latency (99.999%) 750 µs

Endurance
Total Bytes Written (TBW)
BOOT: Up to 613TB
PRO: Up to 9110TB
MAX: Up to 24,528TB

Reliability
MTTF: 3.0 Million Device Hours2
Static and Dynamic Wear Leveling
Uncorrectable Bit Error Rate (UBER): <1 Sector Per 1017 Bits Read
End-To-End Data Protection
Enhanced Power-Loss Data Protection with Data Protection Capacitor Monitoring
Self-Monitoring, Analysis, And Reporting Technology
(SMART) Command Set

Mechanical
2.5-Inch X 7.0mm Form Factor
M.2 Type 2280 Form Factor
ROHS-Compliant Package
Secure Field-Upgradeable Firmware With Digitally
Signed Firmware Image
Power Consumption: 240GB/480GB: <3.0W (TYP);
960GB: <3.4W (TYP); 1920GB: <3.8W (TYP);
3840GB/7680GB: <3.9W (TYP)

Operating Temperature
Commercial (0°C to 70°C) 4
Compliance
Micron Green Standard
Built With Sulfur Resistant Resistors
CE (Europe): EN 55032 Class B, Rohs
