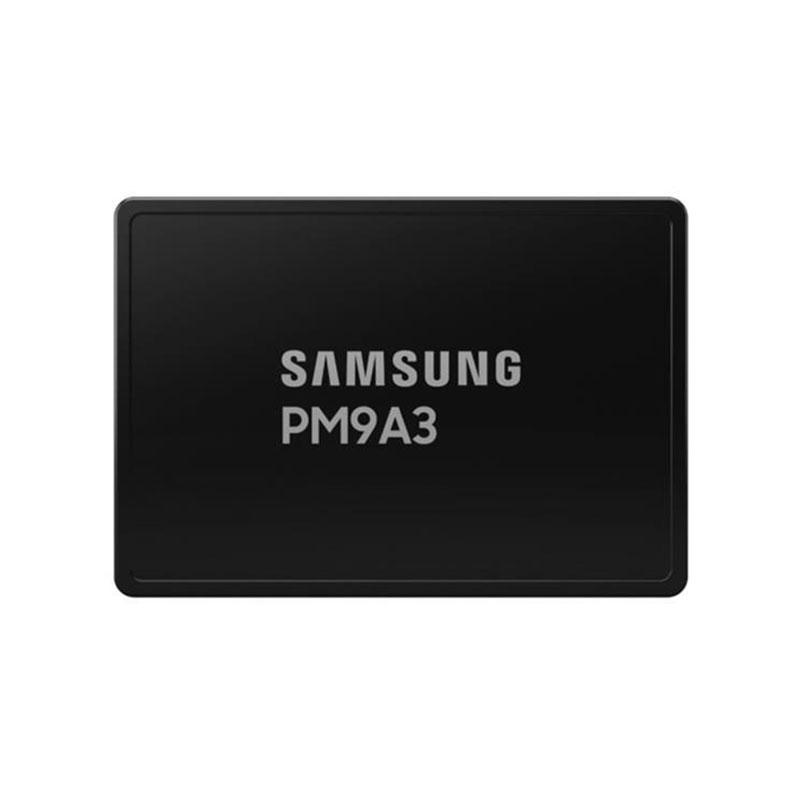

MZQL27T6HBLA-00W07 Samsung 7.68TB PCI E NVMe Solid State Drive (SSD)
MZQL27T6HBLA-00W07 Overview
The Samsung PM9A3 7.68TB is a premium enterprise data-center solid-state drive built to deliver exceptional performance, capacity, and reliability for large-scale server and cloud environments. Featuring a PCI Express 4.0 x4 NVMe interface in the compact U.2 2.5-inch form factor, this SSD offers ultra-high bandwidth and extremely low latency, enabling fast data access for demanding workloads such as virtualization platforms, hyperscale cloud infrastructure, high-transaction databases, big-data analytics, and content delivery networks. Using Samsung’s advanced TLC V-NAND flash technology combined with an enterprise-grade NVMe controller, the PM9A3 provides strong sustained read/write speeds and excellent random IOPS performance for consistent operation under continuous heavy I/O conditions.
$5,499
MZQL27T6HBLA-00W07 Technical Specifications
Samsung PM9A3 7.68TB TLC PCI Express NVMe 4.0 x4 U.2 2.5-Inch Solid State Drive (SSD)
Manufacturer: Samsung
Manufacturer Part: MZQL27T6HBLA-00W07
Capacity: 7.68TB
Form Factor: 2.5-inch U.2 (7 mm)
Interface: PCIe 4.0 x4, NVMe
NAND Type: TLC (V-NAND)
Sequential Read: Up to ~6,700 MB/s
Sequential Write: Up to ~4,000 MB/s
Random Read (4K): Up to ~1,100,000 IOPS
Random Write (4K): Up to ~200,000 IOPS
Endurance: 1 DWPD (5 years)
Power Loss Protection: Yes
MTBF: 2,000,000 hours
UBER: < 1 error per 10^17 bits read
Power Consumption (Active): ~11 W (Read) / ~13.5 W (Write)
Idle Power: ~4 W
Operating Temperature: 0°C – 70°C
Dimensions: 100.2 × 69.85 × 7.0 mm
