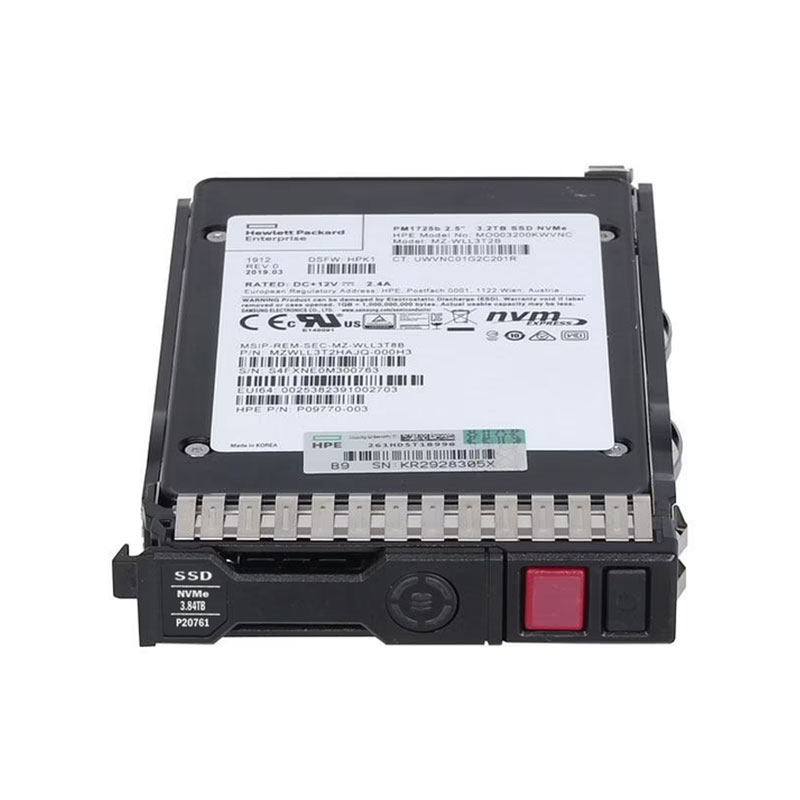

P20009-H21 HPE 3.84TB 2.5inch (SFF) NVMe U.3 PCIe Solid State Drive
P20009-H21 Overview
The HPE P20009-H21 3.84TB 2.5-inch Small Form Factor (SFF) NVMe U.3 PCIe Read Intensive Solid State Drive (SSD) is a high-performance enterprise-class storage solution designed to deliver exceptional speed, reliability, and efficiency for modern data centers. Featuring a PCI Express 4.0 x4 NVMe interface, it provides superior throughput and ultra-low latency, making it ideal for read-intensive workloads such as virtualization, cloud applications, analytics, and online transaction processing (OLTP).
With a 3.84TB capacity, this SSD offers ample storage space while maintaining consistent performance and endurance. The Digitally Signed Firmware ensures enhanced security and data integrity, protecting systems from unauthorized firmware access or tampering.
$2,970
P20009-H21 Technical Specifications
HPE 3.84TB 2.5inch Small Form Factor (SFF) Digitally Signed Firmware NVMe U.3 PCIe High Performance SC Read Intensive Solid State Drive
Brand: HPE
MPN: P20009-H21
General
Device Type: Solid State Drive – Hot-Swap
Capacity: 3.84TB
Form Factor: 2.5 inch SFF
NAND Flash Memory Type: Triple-level cell (TLC)
Connectivity: Single Port
Interface: NVMe U.3 PCIe
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier (SC)
Workload Type: Read Intensive
Bundled with: HPE Smart Carrier (SC)
Features: Digitally Signed Firmware (DS)
Expansion & Connectivity
Interfaces: 1 x PCIe NVMe
Compatible Bay: 2.5″ SFF
Power Consumption
Idle Time: 6.30 Watt
Random Read: 17.90 Watt
Random Write: 15.30 Watt
Sequential Read: 15.70 Watt
Sequential Write: 18.20 Watt
Random Read/Write: 14.60 Watt
Maximum: 18.20 Watt
Product Dimensions & Weight
Height: 5.75 inch (14.61 cm)
Width: 8.63 inch (21.92 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.508 lbs (0.68 kg)
