Q1J09B HPE D3610 12-Bay 12Gb/s SAS Rack-mountable Drive Enclosure
Q1J09B Overview

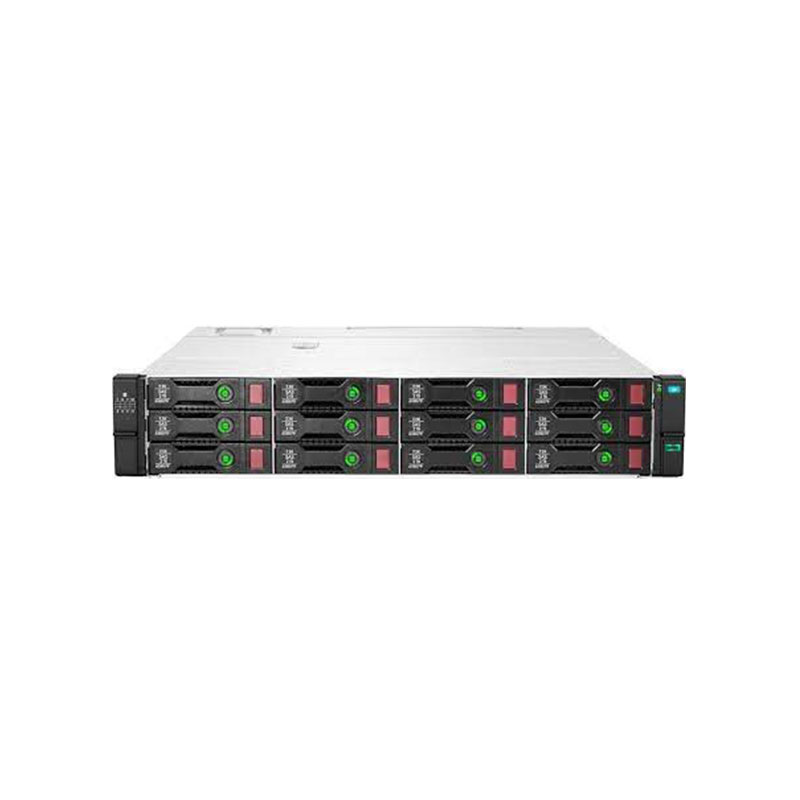

The Q1J09B (D3610) from HPE is an enterprise-class, 2U 12-bay rackmount storage enclosure designed to expand external storage capacity for HPE ProLiant servers and MSA arrays. Featuring a high-bandwidth 12Gb/s SAS interface, it delivers rapid data transfer rates and ultra-low latency for demanding data center applications. The 2U chassis accommodates up to twelve hot-swappable 3.5-inch Large Form Factor (LFF) SAS or SATA drives, allowing businesses to seamlessly scale up their storage footprint with either high-capacity HDDs or high-performance SSDs. Equipped with dual hot-plug redundant power supplies and cooling fans, it minimizes single points of failure to ensure continuous 24/7 data availability and enterprise-grade reliability.
$3,049
Q1J09B Technical Specifications
HPE D3610 12-Bay 12Gb/s SAS Rack-mountable Drive Enclosure
Brand/Series: HPE D3000 Series
Form Factor: 2U Rackmount
Device Type: 12-Bay Storage Expansion Enclosure (Diskless JBOD)
Interface: Dual-port 12Gb/s SAS (Serial Attached SCSI)
Drive Bays: 12x 3.5″ Large Form Factor (LFF) hot-plug drive bays
Expandability: Cascade/daisy-chain up to 8 enclosures from a single controller port (up to 96 drives total)
Power & Cooling: Redundant, hot-pluggable power supplies and fan modules
Best For: Enterprise data centers needing to easily scale out direct-attached storage (DAS) capacity for ProLiant servers or BladeSystems.
