SA3400D Synology Dual Controller 2U NAS 12-Bay Active-Passive SAS Diskless
SA3400D Overview

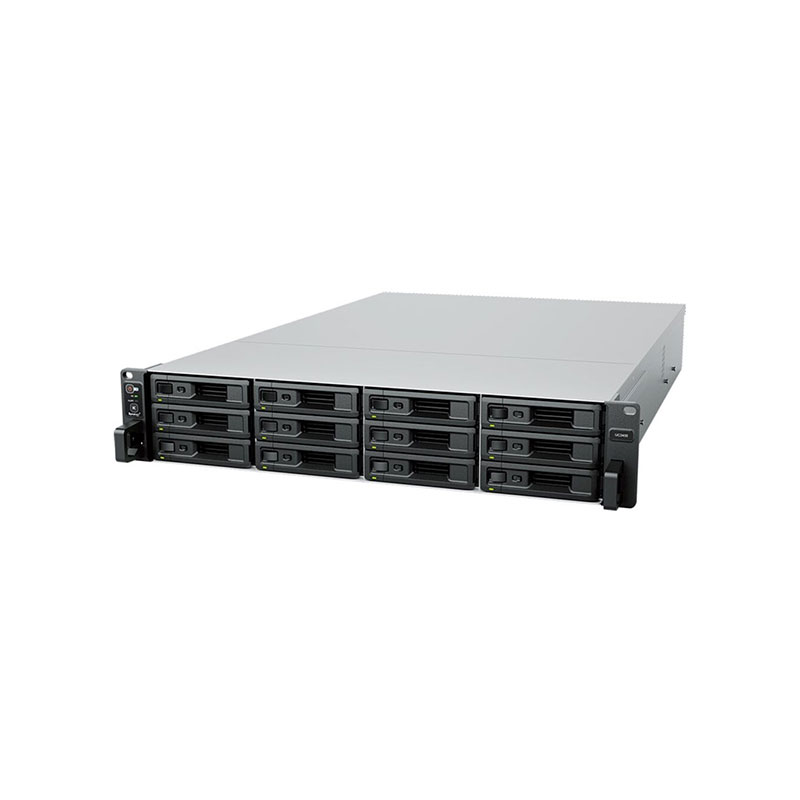

The SA3400D from Synology is a 2U rackmount enterprise NAS featuring 12 hot-swappable drive bays engineered for maximum uptime. It utilizes an active-passive dual-controller architecture linked via an internal Non-Transparent Bridge (NTB), allowing the standby controller to instantly take over data services if the primary unit fails. Each controller is powered by an 8-core Intel Xeon Silver processor and 16GB of DDR4 ECC Registered memory (expandable to 128GB). Built strictly for enterprise SAS HDDs and SSDs, it includes dual 1GbE and 10GbE ports per controller, a PCIe Gen 3.0 slot for 10/25GbE network upgrades, and scales up to 36 drive bays via two RXD1219gl expansion units.
$11,999
SA3400D Technical Specifications
Synology Dual Controller 2U NAS 12-Bay Active-Passive SAS Diskless
Brand/Series: Synology SA Series
Form Factor: 2U Rackmount
Device Type: Enterprise High-Availability NAS & SAN (Diskless)
Architecture: Active-Passive Dual Controller (Automatic system failover via Synology High Availability)
Drive Bays: 12x 3.5″/2.5″ SAS interface bays (Expandable up to 36 drives)
Processor (Per Controller): Intel Xeon D-1541 8-Core 2.1GHz
Memory (Per Controller): 8GB DDR4 ECC UDIMM (Expandable up to 64GB)
Networking (Per Controller): 1x 10GbE RJ-45, 2x 1GbE RJ-45, and 1x PCIe 3.0 slot for 10/25GbE expansion
Protocol Support: File-level (SMB, NFS, AFP, FTP) and Block-level (iSCSI, Fibre Channel)
Best For: Enterprise file sharing, business continuity infrastructure, and central corporate backups requiring high system availability.
