SB5PHV7X076T001 Solidigm 7.68tb E1.s 15mm Pcie Tlc SSD
SB5PHV7X076T001 Overview

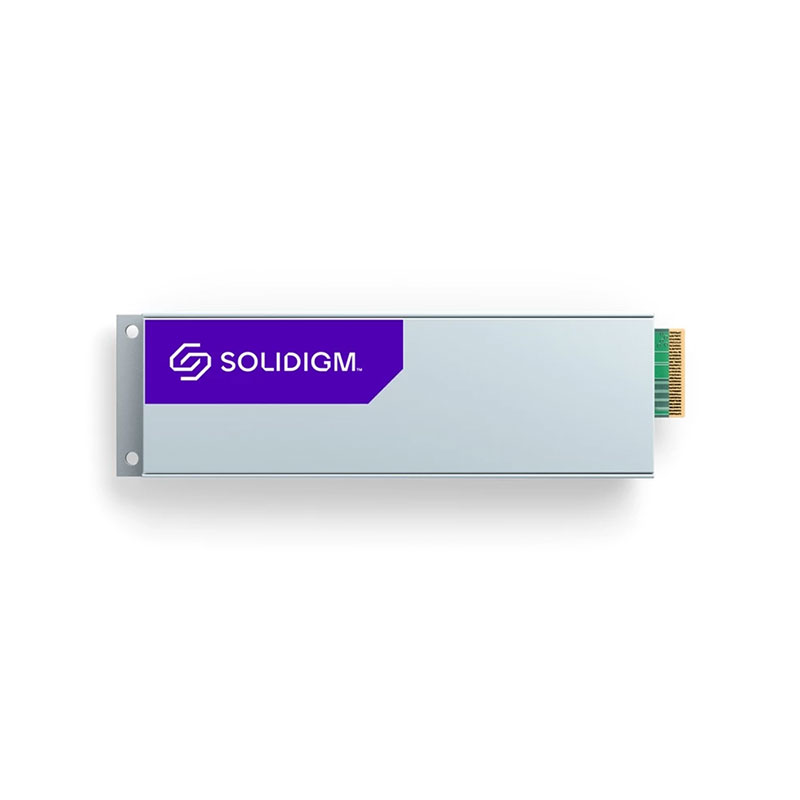

The Solidigm D7-PS1010 7.68TB E1.S 15mm PCIe 5.0 x4 NVMe SSD (SB5PHV7X076T001) is a high-performance enterprise solid-state drive engineered for modern data centers, cloud infrastructure, AI/ML environments, and mission-critical server workloads. Built with advanced 176-layer TLC 3D NAND technology, this SSD delivers exceptional speed, reliability, and endurance while maintaining consistent performance under demanding workloads. Its compact E1.S 15mm form factor enables higher storage density and improved thermal efficiency, making it an ideal choice for next-generation servers and AI platforms.
$9,500
SB5PHV7X076T001 Technical Specifications
Solidigm D7-ps1010 Series 7.68tb E1.s 15mm Pcie 5.0 X4 V7 Tlc Generic No Opal Solid State Drive
Manufacturer : SOLIDIGM
Manufacturer Part : SB5PHV7X076T001
Product Series : D7-ps1010
Product Name : D7-ps1010 Series Tlc Solid State Drive.
Technical Information :
Storage Capacity : 7.68tb
Interface Type : Pcie 5.0 X4, Nvme
Form Factor : E1.s 15mm
Lithography : 176l Tlc 3d Nand
Endurance Rating : Standard Endurance (se)
Shock : 1000 G/0.5 Msec
Mtbf : 2.5 Million Hours
Performance :
Sequential Bandwidth – 100% Read (up To) : 14500 Mb/s
Sequential Bandwidth – 100% Write (up To) : 10500 Mb/s
Random Read (100% Span) : 3300000 Iops (4k Blocks)
Random Write (100% Span) : 400000 Iops (4k Blocks)
Power – Active : 23w
