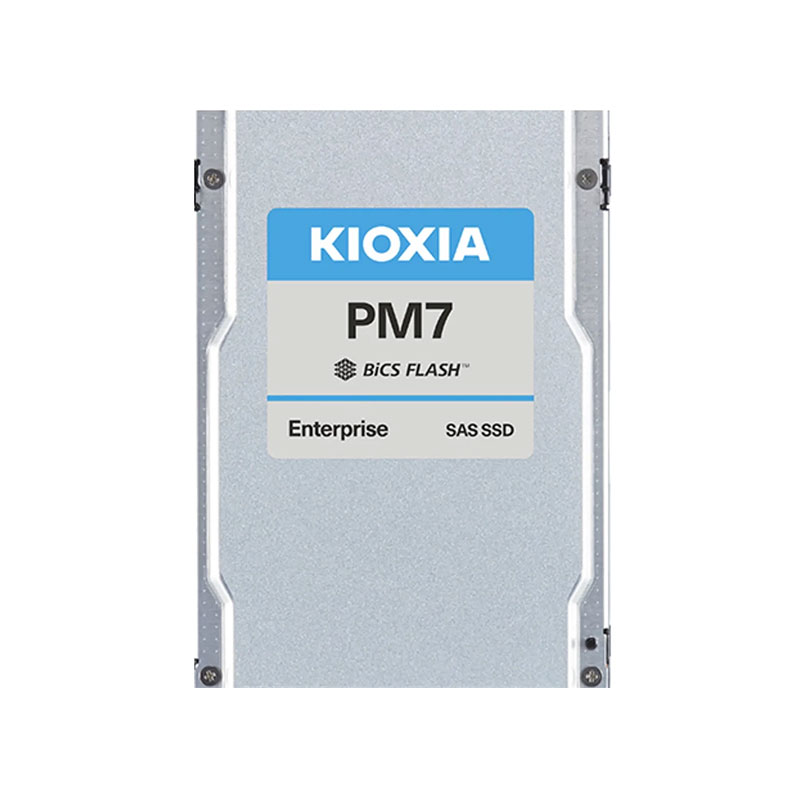

SDFU083DHB01T Kioxia 7.68tb Sas-24gbps Tlc 2.5inch Internal Solid State Drive
SDFU083DHB01T Overview
The KIOXIA SDFU083DHB01T PM7‑R Series 7.68TB SAS SSD is a 7.68 TB enterprise‑class SAS solid‑state drive from KIOXIA’s PM7‑R series, designed for read‑intensive workloads in data centers and server systems. It uses a 24 Gb/s SAS‑4 interface with single/dual‑port support and a standard 2.5‑inch, 15 mm form factor, enabling hot‑swappable deployment in enterprise storage arrays. The drive is built with 112‑layer BiCS FLASH™ TLC NAND flash, delivering a balance of high capacity, performance, and reliability for applications like data warehousing, web services, streaming media, and video‑on‑demand systems.
$4,365
SDFU083DHB01T Technical Specifications
Kioxia Pm7-r Series 7.68tb Sas-24gbps Sie Read Intensive Bics Flash Tlc 2.5inch Enterprise Internal Solid State Drive
Manufacturer : KIOXIA
Part Number : SDFU083DHB01T
Type : Solid State Drive – Internal
Main Specifications :
Capacity : 7.68 Tb
Nand Flash Memory Type : Bics Flash Tlc
Form Factor : 2.5
Interface : Sas 24gb/s
Dimensions (wxdxh) : 15mm X 69.85mm X 100.45mm
Weight : 150 G
Extended Specifications :
Type : Solid State Drive – Internal
Capacity : 7.68 Tb
Nand Flash Memory Type : Bics Flash Tlc
Form Factor : 2.5
Interface : Sas 24gb/s
Performance :
Sustained 128 Kib Sequential Read : 4,200 Mb/s
Sustained 128 Kib Sequential Write : 4100 Mb/s
Sustained 4 Kib Random Read : 720k Iops
Sustained 4 Kib Random Write : 175k Iops
Reliability :
Mttf : 2500000 Hours
Dwpd : 1
