UCS-SP-B200M5-C2T
,

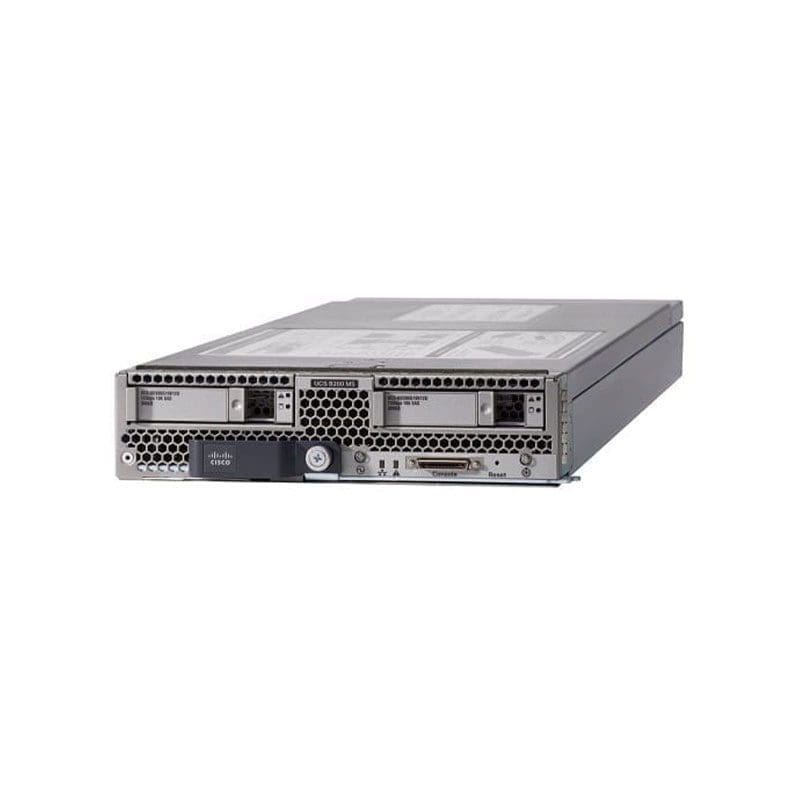

UCS-SP-B200M5-C2T Cisco UCS SmartPlay Select B200 M5 Blade

Compare

UCS-SP-B200M5-C2T Overview

The Cisco UCS B200 M5 Blade Server delivers performance, flexibility, and optimization for deployments in data centers, in the cloud, and at remote sites. This enterprise-class server offers market-leading performance, versatility, and density without compromise for workloads including Virtual Desktop Infrastructure (VDI), web infrastructure, distributed databases, converged infrastructure, and enterprise applications such as Oracle and SAP HANA. The B200 M5 server can quickly deploy stateless physical and virtual workloads through programmable, easy-to-use Cisco UCS Manager software and simplified server access through Cisco SingleConnect technology.

$15,875

UCS-SP-B200M5-C2T Technical Specifications

Cisco UCS SmartPlay Select B200 M5 Blade

Bay Provided
Form Factor :2.5″ SFF
Free Qty :2
Total Qty :2 Bays
Cache Memory
Installed Size :55 MB
Installed Size :55
Per Processor Size :27.5 MB
Per Processor Size :27.5
Type :L3 cache
Card Reader
Supported Flash Memory Cards :SD Memory Card
Chassis
Form Factor :Blade Server
Hot-Swap Bays Qty :2
Manufacturer Form Factor :Blade
Server Storage Bays :Hot swap
Server Swappable Drive Form Factor :2.5″
Server Swappable Drive Form Factor (metric) :6.4 cm
Server Swappable Drive Interface :SATA/SAS
Dimensions & Weight
Depth :24.4 in
Height :2 in
Weight :9.5 lbs
Width :8 in
Display
Type :None.
Environmental Parameters
Humidity Range Operating :5 – 93% (non-condensing)
Max Operating Temperature :95 °F
Min Operating Temperature :50 °F
Expansion Bays
Form Factor (metric) :6.4 cm SFF
Type :Hot-swap
Expansion Slots
Type :Expansion slot
Type :M.2 Card
Type :mLOM
Type :SD card (internal)
Hard Drive
Type :No HDD
Hard Drive (2nd)
Type :None
Hard Drive (3rd)
Type :None
Header
Brand :Cisco
Manufacturer :Cisco Unified Computing
Model :SmartPlay Select B200 M5
Packaged Quantity :1
Product Line :Cisco UCS
Interface Provided
Location :1 internal
Type :USB 3.0
Qty :1
Type :KVM
Miscellaneous
Color Category :Gray
Networking
Data Link Protocol :40Gb Fibre Channel over Ethernet (FCoE)
Ethernet Controller(s) :Cisco UCS Virtual Interface Card 1340
Ethernet Ports :2 x QSFP
Optical Storage
Drive Type :No optical drive
Type :None
Optical Storage (2nd)
Type :None
Printer
Type :None
Processor
Clock Speed :2.4 GHz
Installed Qty :2
Manufacturer :Intel
Max Supported Qty :2
Number of Cores :20-core
Processor Number :6148
Server Scalability :2-way
Type :Xeon Gold
Upgradability :Upgradable
RAM
Configuration Features :6 x 32 GB
Data Integrity Check :Advanced ECC
Empty Slots :18
Form Factor :DIMM 288-pin
Installed Size :192 GB
Installed Size :192
Max Supported Size :3072 GB
Max Supported Size :3072
Memory Specification Compliance :PC4-21300
Memory Speed :2666 MHz
Slots Qty :24 DDR4 Slots
Technology :DDR4 SDRAM

SKU: UCS-SP-B200M5-C2T Categories: , Tags: , , , , , , , , , , ,
