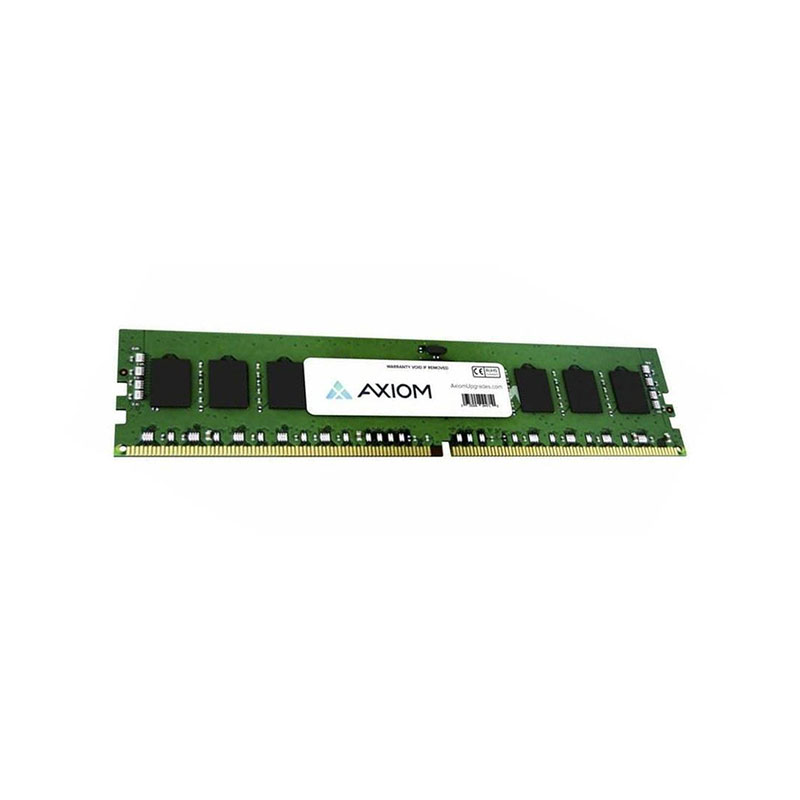

4X77A08636-AX Axiom Lenovo Compatible 128GB PC4-25600 DDR4-3200 288-pin SDRAM RDIMM
4X77A08636-AX Overview
The is an enterprise-class 128GB DDR4-3200MHz (PC4-25600) ECC 3DS Registered RDIMM, precision-engineered as a 100% guaranteed compatible alternative to the Lenovo factory original TruDDR4 module (4X77A08636). Operating at a standard JEDEC voltage of 1.2V, this 288-pin high-density module features a multi-rank physical layout built upon 3D Stacked (3DS) Through-Silicon Via (TSV) technology, which vertically stacks multiple DRAM dies to achieve an expansive 128GB capacity within a single memory slot. Optimized for standard server timings, it is specifically tailored for seamless hardware integration across mission-critical Lenovo ThinkSystem servers and compute nodes, including Intel Xeon Scalable and AMD EPYC platforms.
$4,999
4X77A08636-AX Technical Specifications
Axiom Lenovo Compatible 128GB PC4-25600 DDR4-3200 288-pin SDRAM RDIMM
Brand : Axiom
Capacity : 128GB
Memory Type : DDR4 SDRAM
Speed : 3200MHz (PC4-25600)
Error Correction : ECC (Error-Correcting Code)
Module Type : Registered DIMM (RDIMM) / 3DS RDIMM
Pin Count : 288-Pin
Voltage : 1.2V
Compatibility : Lenovo
