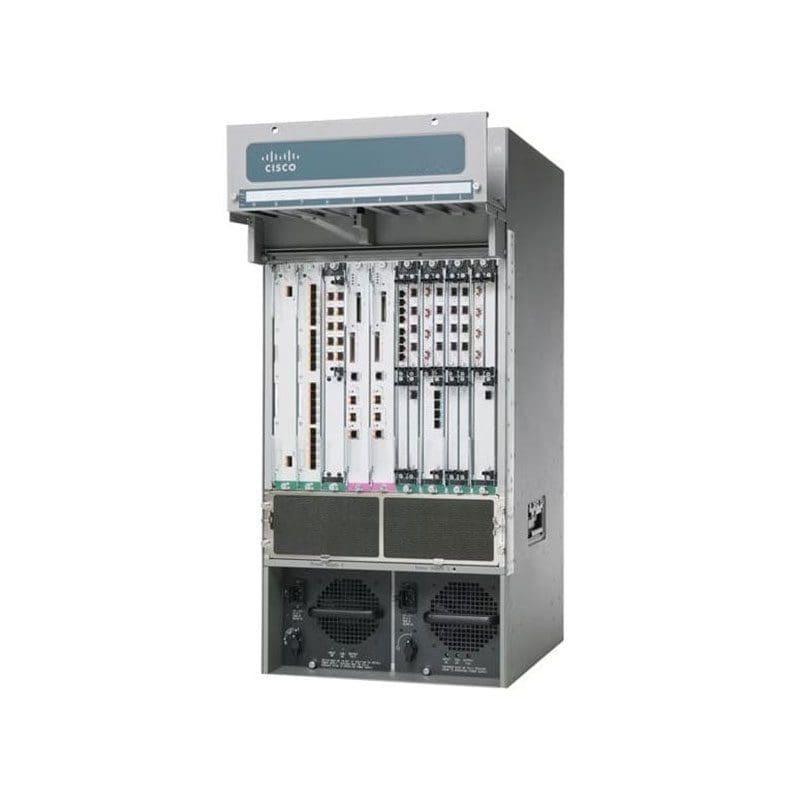

Refurbished 7609S-SUP720B-R Cisco 7609 Router Bundle

Refurbished 7609S-SUP720B-R Technical Specifications

Cisco 7609S Chassis,9-slot,Redundant System,2SUP720-3B,2PS

Chassis
Installed Devices Modules Qty : 2
Supported Devices Modules Qty : 9
Expansion Slots
Type : Expansion slot
Performance
Type : IPv4 routing
Value : 400 Mpps
Type : IPv6 routing
Value : 200 Mpps
Type : Switching capacity
Value : 720 Gbps
Networking
Compliant Standards : IEEE 802.1x
Connectivity Technology : Wired
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Features : Access Control List (ACL) support, DHCP support, DiffServ support, DoS attack prevention, Dynamic IP address assignment, IGMP snooping, Layer 2 switching, Layer 3 switching, MPLS support, MPLS VPN, NAT support, Quality of Service (QoS), Traffic shaping, Virtual Route Forwarding-Lite (VRF-Lite), VLAN support, VPN support
Form Factor : Rack-mountable
Key Features : VPN support
Modular : Modular
Network Transport Protocol : ICMP/IP, TCP/IP
Routing Protocol : BGP-4, Bidirectional PIM, GRE, IGMP, IS-IS, OSPF, PIM-DM, PIM-SM, RIP
Type : Router
Miscellaneous
Compliant Standards : AS/NZS 3260, CISPR 22 Class A, CSA 22.2 No. 60950, EMC, EN 60950, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN50082-1, EN55022 Class A, EN55024, ETSI, FCC Part 15 A, ICES-003 Class A, IEC 60950, NEBS level 3, UL 60950, VCCI Class A ITE
Height (Rack Units) : 21
MTBF : 448,000 hours
Rack Mounting Kit : Included
Interface Provided
Connector Type : RJ-45
Interface : Ethernet 10Base-T/100Base-TX/1000Base-T
Qty : 2
Type : Network
Connector Type : SFP (mini-GBIC)
Interface : Console
Qty : 1
Type : Management
Type : Management
Modem
Type : None
Environmental Parameters
Humidity Range Operating : 10 – 85% (non-condensing)
Max Operating Temperature : 104 °F
Min Operating Temperature : 32 °F
Header
Brand : Cisco
Bundled with : 2 x Cisco Catalyst 6500 Series/7600 Series Supervisor Engine 720-3B
Compatibility : PC
Manufacturer : CISCO DS HARDWARE DIRECT
Series Cisco 7609
Model : 7609S
Packaged Quantity : 1
Product Line : Cisco
Product Type: Router Chassis
Router Bundle
Power Device
Hot-Plug : Hot-plug
Installed Qty : 2
Max Supported Qty : 2
Power Redundancy : Yes
Type : Internal power supply
Slot Provided
Free Qty : 7
Total Qty : 9
Capacity
Type : ACL rules
Type : IPv4 routes
Value : 256000
Type : IPv6 routes
Type : NetFlow entries
Value : 128000
Dimensions & Weight
Depth : 21 in
Height : 36.7 in
Width : 17 in
RAM
Installed Size : 2 GB
Max Supported Size : 4 GB
