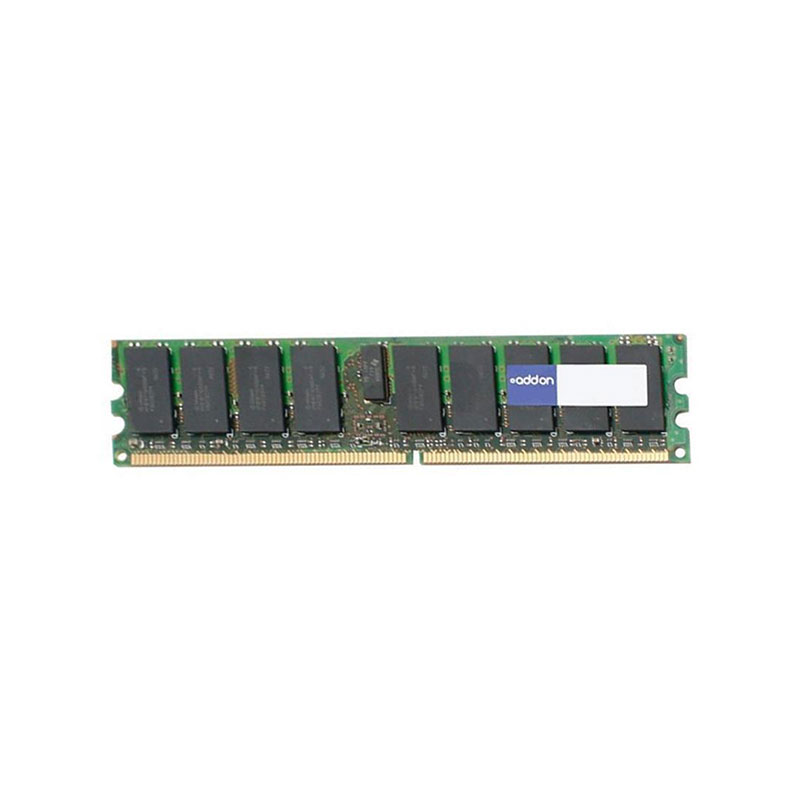

AM3200D4DR4RN/64G Addon 64GB DDR4 Sdram Memory Module 64GB
AM3200D4DR4RN/64G Overview
The AddOn AM3200D4DR4RN/64G is an ultra-high-density, enterprise-class 64GB DDR4 memory module engineered specifically for heavy-duty server infrastructure, cloud data centers, and high-performance computing (HPC) nodes. Operating at a native speed of 3200MHz (PC4-25600), it provides an exceptional high-bandwidth, high-capacity memory foundation optimized to support demanding virtualization layers (VMware ESXi, Hyper-V), massive containerized deployments, and large-scale in-memory databases.
A defining characteristic of this module is its Registered ECC (RDIMM) architecture packaged into an industry-standard 288-pin server form factor. Equipped with an onboard hardware register to buffer command and address signals,
$2,720
AM3200D4DR4RN/64G Technical Specifications
Addon 64GB DDR4 Sdram Memory Module – For Server – 64 GB DDR4 Sdram – Cl17 – 1.20 V – Ecc – Registered – 288-Pin – Rdimm
Manufacturer: AddOn Networks
Part Number: AM3200D4DR4RN/64G
Capacity: 64 GB
Memory Type: DDR4 SDRAM
Module Type: 288-Pin RDIMM (Registered DIMM)
Bus Speed: 3200 MHz (PC4-25600)
Data Transfer Rate: 25.6 GB/s
CAS Latency: CL17 / CL22 (JEDEC standard dual timings)
Error Correction: ECC (Error Correcting Code)
Signal Processing: Registered
Rank Architecture: Dual Rank x4 (2Rx4)
Operating Voltage: 1.2V
Form Factor: Standard DIMM Height
Contact Pins: 288-Pin Gold-Plated
Standard: JEDEC compliant
