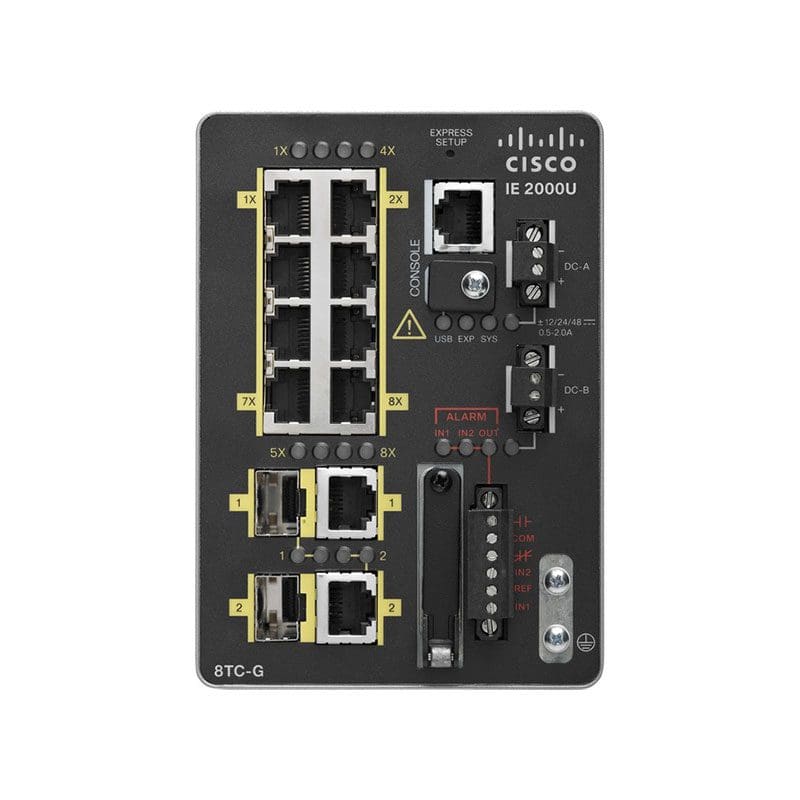

Refurbished IE-2000U-8TC-G Cisco Industrial Ethernet 2000U Series

Refurbished IE-2000U-8TC-G Technical Specification

Cisco Industrial Ethernet 2000U Series

Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco Industrial Ethernet
Model :2000U Series
Packaged Quantity :1
RAM
Installed Size :256 megabyte
Flash Memory
Installed Size :64 megabyte, 64 megabyte
Performance
Performance :Forwarding performance (64-byte packet size): 6.5 Mpps
Capacity
Capacity :IGMP groups: 255, Virtual interfaces (VLANs): 255
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :Fast Ethernet
Form Factor :DIN rail mountable
Ports Qty :8
Routing Protocol :IGMP, Static IPv4 routing
MAC Address Table Size :8K entries
Manageable :Yes
Remote Management Protocol :CLI, HTTPS, SNMP 1, SNMP 2, SNMP 3, SSH
Features :Broadcast Storm Control, DHCP support, MLD snooping, Multicast Storm Control, Port Security, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Spanning Tree Protocol (STP) support, Unicast Storm Control
Compliant Standards :IEEE 1588-2008, IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ports
Qty :8
Type :10/100
Ports (2nd)
Qty :2
Type :Combo Gigabit SFP
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SD Memory Card
Interface Provided
Interfaces :2 x 1000Base-T RJ-45, 2 x SFP, 8 x 100Base-TX RJ-45
Software
Type :Cisco IOS LAN Base
Power Device
Power Consumption Operational :16 watt
Miscellaneous
Color Category :Black
Rack Mounting Kit :Optional
Authentication Method :RADIUS, Secure Shell (SSH), TACACS+
Compliant Standards :CSA C22.2 No. 60950-1, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, IEC 60950-1, UL 508, UL 60950-1
Dimensions & Weight
Width :3.5 inch
Depth :5.3 inch
Height :5 inch
Weight :3.44 lbs
