P23489-B21 Technical Specifications

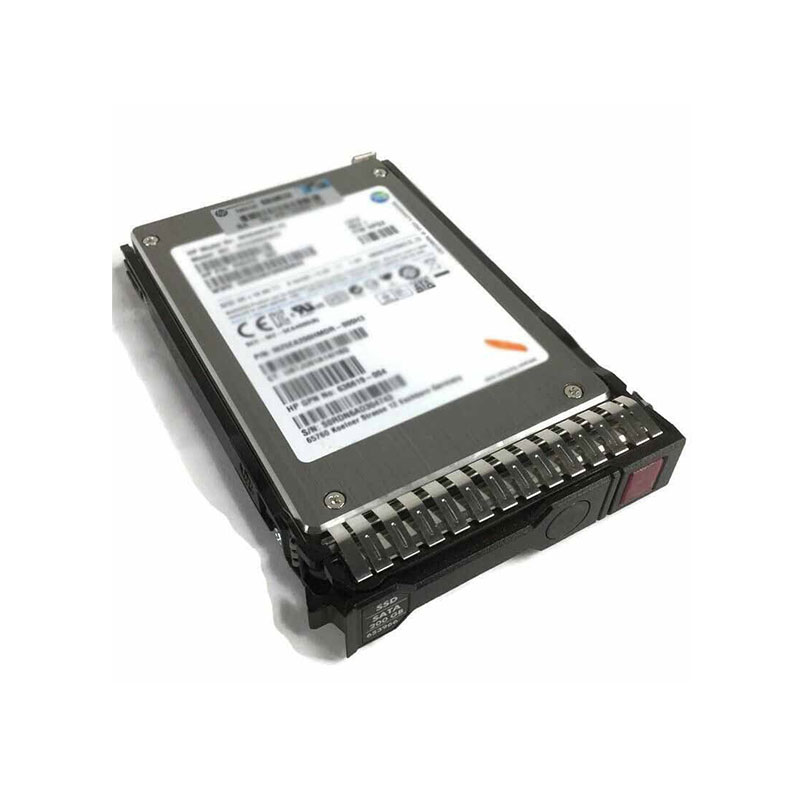

HPE 3.84TB Serial Advanced Technology Attachment (SATA)-6GBPS 2.5inch Smart Carrier Very Read Optimized Solid State Drive for ProLiant Servers
Brand: HPE
MPN: P23489-B21
General
Device Type: Solid State Drive – Hot-Swap
Capacity: 3.84 TB
NAND Flash Memory Type: Quad-Level Cell (QLC)
Connectivity: Single Port
Form Factor: 2.5 inch SFF
Interface: SATA 6Gbps
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier (SC)
Workload Type: Very Read Optimized
Features: Digitally Signed Firmware
Bundled with: HPE Smart Carrier
Expansion & Connectivity
Interfaces: 1 x SATA 6 Gb/s
Compatible Bay: 2.5″ SFF
Power Consumption
Idle Time: 1.70 Watt
Random Read: 2.20 Watt
Random Write: 2.20 Watt
Sequential Read: 3.29 Watt
Sequential Write: 5.30 Watt
Random Read/Write: 2.20 Watt
Power MAX: 5.30 Watt
Product Dimensions & Weight
Height: 5.00 (12.70 cm)
Width: 7.00 inch (17.78 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.10 lbs (0.50 kg)
