Refurbished380634-B21 Technical Specifications

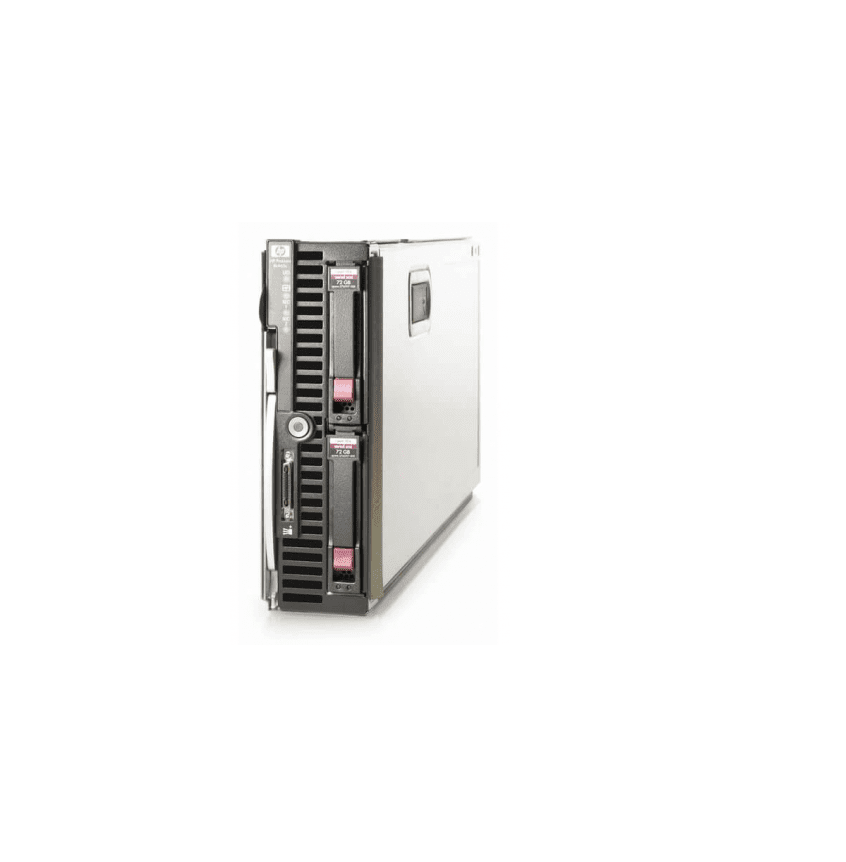

HP Proliant Bl20p G3 2X XEON 3.4GHz 2GB RAM Ultra320 SCSI 4X Gigabit Ethernet Ilo Blade Server.
GENERAL INFORMATION:
Manufacturer: hewlett packard
Manufacturer part number: 380634-b21
Product name: proliant bl20p g3 server (Blade Server)
PROCESSOR & CHIPSET:
Processor type: intel xeon 3.4 ghz
64-bit computing: yes
Installed processor qty: 2
Max supported qty: 2
Processor main features:
Hyper-threading technology
Intel extended memory 64 technology
Chipset type: intel e7520
Data bus speed: 800 mhz
CACHE MEMORY:
Type: l2 cache
Installed size: 4 mb
Cache per processor: 2 mb
MEMORY:
Installed ram size: 2 gb / 8 gb (max)
Technology: ddr2 sdram – ecc
Memory speed: 400 mhz
Memory specification compliance: pc2-3200
Form factor: dimm 240-pin
Features: registered
Upgrade rule: 2 modules at a time
STORAGE:
Hard drive: none.
STORAGE CONTROLLERS:
Storage controllers type: 1 x raid – integrated
Controller interface type: ultra320 scsi
Storage controller name: smart array 6i controller
Channel qty: 2
Raid level: raid 0, raid 1, raid 5, raid 10
Buffer size: 64 mb
Network & Communication:
Ethernet Technology : Gigabit Ethernet
