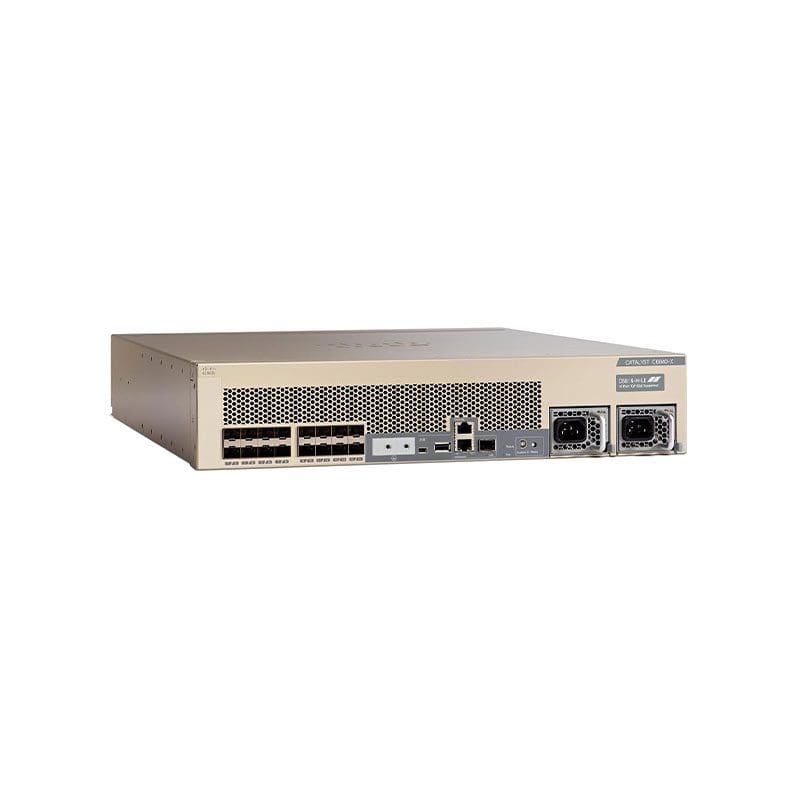

Refurbished C6816-X-LE Cisco Catalyst 6816-X Chassis switch 16 ports

Refurbished C6816-X-LE Cisco Technical Specifications

Catalyst 6816-X Chassis (Standard Tables) switch 16 ports

Manufacturer :CISCO DS HARDWARE DIRECT
Brand :Cisco
Product Line :Cisco Catalyst
Model :6816-X Chassis (Standard Tables)
Packaged Quantity :1
RAM
Installed Size :4 GB
Performance
Performance :Bandwidth (full duplex): 80 Gbps, IPv4 routing: 60 Mpps, IPv6 routing: 30 Mpps
Capacity
Capacity :ACL entries: 64000, Domains: 16000, IPv4 routes (Multicast): 128000, IPv4 routes: 256000, IPv6 routes (Multicast): 64, IPv6 routes: 128000, NetFlow entries: 512000, Virtual interfaces (VLANs): 4094
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :10 Gigabit Ethernet
Form Factor :Desktop, Rack-mountable
Ports Qty :16
Routing Protocol :IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MPLS, MSDP, PIM-DM, PIM-DMv6, PIM-SM, PIM-SMv6
MAC Address Table Size :128K entries
Jumbo Frame Support :9216 bytes
Manageable :Yes
Remote Management Protocol :RMON, SMON
Features :802.1x authentication, Access Control List (ACL) support, Control plane protection (CoPP), Deficit Weighted Round Robin (DWRR), DiffServ Code Point (DSCP) support, DoS attack prevention, Flexible NetFlow (FNF), IGMP filtering, IGMP snooping, IPv4 support, IPv6 support, MACsec support, Management Information Base (MIB), Multicast Source Discovery Protocol (MSDP), NAT support, NetFlow, PIM snooping, Port Security, Remote Switch Port Analyzer (RSPAN), Reset button, Shaped Round Robin (SRR), Spanning Tree Protocol (STP) support, Unicast Reverse Path Forwarding (URPF), Virtual Private LAN Service (VPLS), Virtual Route Forwarding-Lite (VRF-Lite), VLAN support, Weighted Random Early Detection (WRED)
Compliant Standards :IEEE 802.1ae, IEEE 802.1x
Ports
Qty :16
Type :1 Gigabit SFP/ 10 Gigabit SFP+
Interface Provided
Interfaces :1 x console (mini-USB) Type B, 1 x management RJ-45, 1 x management SFP, 1 x serial (console) RJ-45, 1 x USB Type A, 16 x 10GBase-X SFP+
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Power Redundancy Scheme :1+1 (with optional power supply)
Installed Qty :0
Max Supported Qty :2
Miscellaneous
Color Category :Gray
Height (Rack Units) :2
Compliant Standards :AS/NZS 3548 Class A, AS/NZS 60950, CAN/CSA C22.2 No. 60950, CISPR 22 Class A, EN 60950-1 Second Edition, EN 61000-6-1, EN50082-1, EN55022 Class A, EN55024, ETS 300 386, ETSI 300 019, FCC Part 15 A, GR-1089-CORE, IEC 60950-1 Second Edition, UL 60950-1 Second Edition, VCCI Class A
Dimensions & Weight
Width :17.4 inch
Depth :21.8 inch
Height :3.5 inch
Weight :53 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Min Storage Temperature :-4 degree Fahrenheit
Max Storage Temperature :149 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
Humidity Range Storage :5 – 90% (non-condensing)
