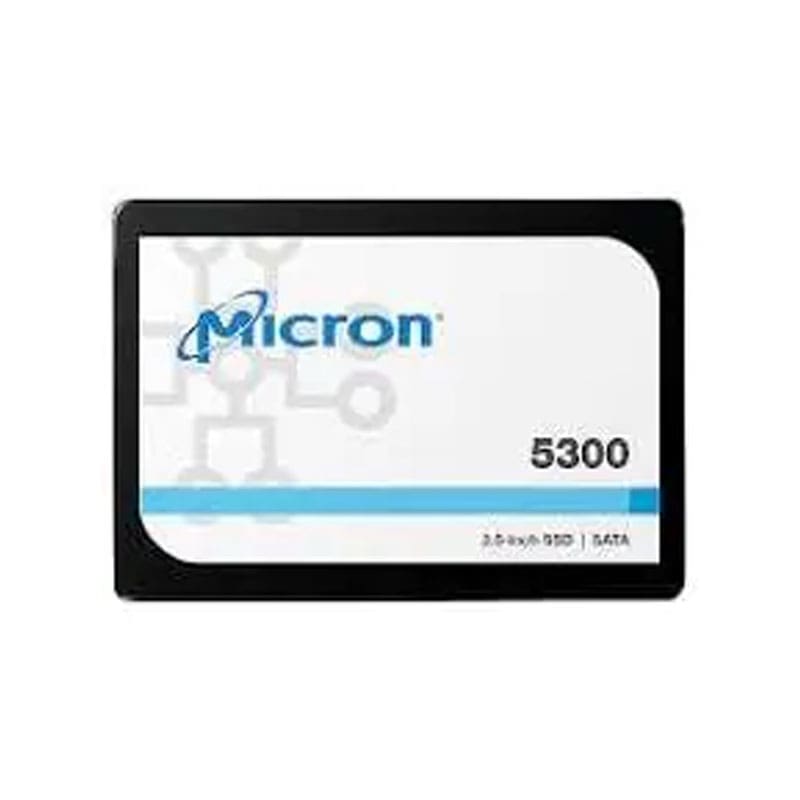

MTFDDAK7T6TDS-1AW16A Micron 7.68TB SATA 6GBPS SSD

MTFDDAK7T6TDS-1AW16A Technical Specifications

Micron 7.68TB SATA 6GBPS TCG Solid State Drive

Manufacturer: Micron
Product Type: Solid State Drive (SSD)
Interfaces: SATA 6GBPS
Product Series: 5300
Technical Information of 7.68TB/7680GB Solid State Drive
SSD Class: Server/Enterprise
SSD Capacity: 7.68TB/7680GB

SSD Form Factor: 2.5 Inch
SSD Host Interface: SATA 3.0 (6 GB/s)
Model/Series/Type: 5300P (PRO)
Performance (Steady State) about Server/Enterprise SSD
Sequential 128KB Read: Up to 540 MB/S
Sequential 128KB Write: Up To 520 MB/S
Random 4KB Read: Up To 95,000 IOPS
Random 4KB Write: Up To 75,000 IOPS
Endurance

Total Bytes Written (TBW)
BOOT: Up to 613TB
PRO: Up to 9110TB
MAX: Up to 24,528TB

Dimensions & Weight
Height: 0.63 inch
Width: 3.10 inch
Depth: 5.45 inch
Weight: 1.50 LBS

Reliability
MTTF: 3.0 Million Device Hours2
Static and Dynamic Wear Leveling
Uncorrectable Bit Error Rate (UBER): <1 Sector Per 1017 Bits Read
End-To-End Data Protection
Enhanced Power-Loss Data Protection with Data Protection Capacitor Monitoring
Self-Monitoring, Analysis, And Reporting Technology
(SMART) Command Set

Mechanical
2.5-Inch X 7.0mm Form Factor
M.2 Type 2280 Form Factor
ROHS-Compliant Package
Secure Field-Upgradeable Firmware With Digitally
Signed Firmware Image
Power Consumption: 240GB/480GB: <3.0W (TYP);
960GB: <3.4W (TYP); 1920GB: <3.8W (TYP);
3840GB/7680GB: <3.9W (TYP)

Operating Temperature
Commercial (0°C to 70°C) 4

Compliance
Micron SSDS Comply With The Following
Micron Green Standard
