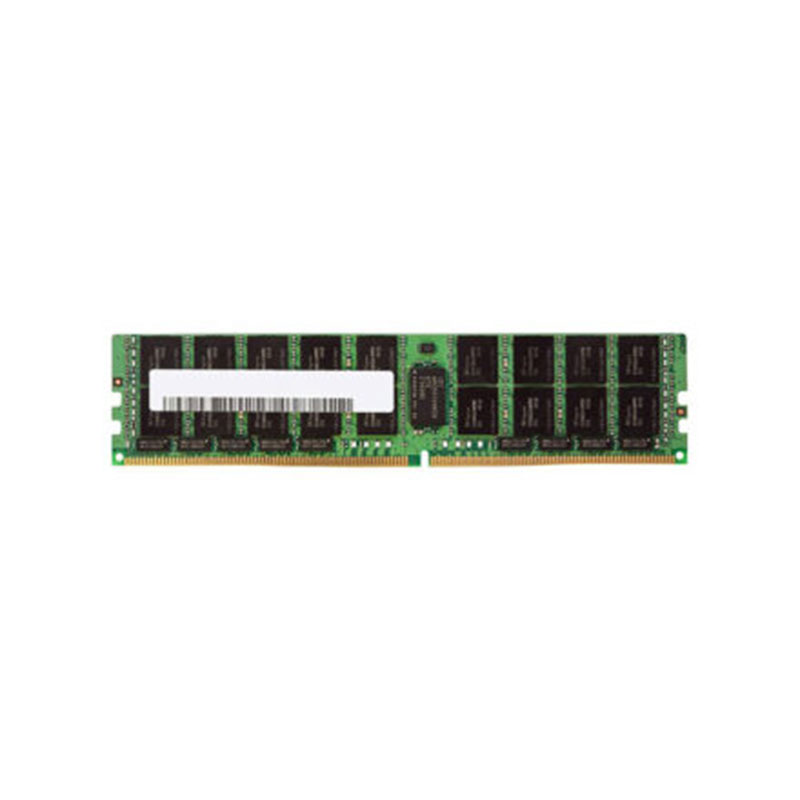

UCS-ML-X32G2RS-H-AX Axiom 32GB DDR4-2666MHz DIMM Memory Module
UCS-ML-X32G2RS-H-AX Overview
The Axiom UCS-ML-X32G2RS-H-AX is a high-performance 32GB DDR4 memory module specifically engineered for enterprise-class servers and high-density data center environments. Operating at 2666MHz (PC4-21300), it provides the substantial bandwidth necessary for intensive workloads such as large-scale virtualization, high-traffic database management, and cloud computing infrastructure.
The defining technical feature of this module is its Load Reduced DIMM (LRDIMM) architecture. Unlike standard registered memory (RDIMM), which only buffers command and address signals, an LRDIMM uses a specialized buffer chip to also manage data signals.
$760
UCS-ML-X32G2RS-H-AX Technical Specifications
Axiom 32GB PC4-21300 DDR4-2666MHz Registered ECC CL19 288-Pin Load Reduced DIMM 1.2V Dual Rank Memory Module
Manufacturer: Axiom Memory Solutions
Part Number: UCS-ML-X32G2RS-H-AX
Capacity: 32 GB
Memory Type: DDR4 SDRAM
Module Type: 288-Pin LRDIMM
Bus Speed: 2666 MHz (PC4-21300)
Data Transfer Rate: 21.3 GB/s
CAS Latency: CL19
Error Correction: ECC (Error Correcting Code)
Signal Processing: Load Reduced (Buffered)
Rank Architecture: Dual Rank (2Rx4)
Operating Voltage: 1.2V
Form Factor: Standard DIMM Height
Contact Pins: 288-Pin Gold-Plated
Standard: JEDEC compliant
