Cisco-UCSB-EX-M4-1

UCSB-EX-M4-1 Cisco Systems Ucs Scalable M4 Blade

Compare

UCSB-EX-M4-1 Overview

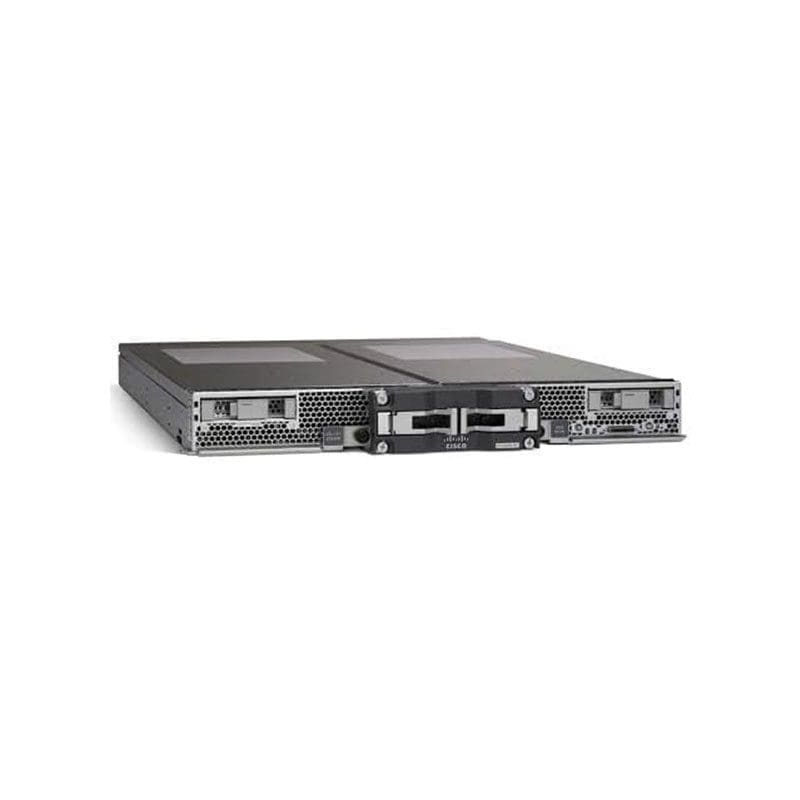

The Cisco® UCS B260 M4 High-Performance Blade Server is a two-socket, full-width blade server supporting the Intel® Xeon® E7-8800 v2, E7-4800 v2, and E7-2800 v2 series processor family CPUs, with up to 3 terabytes (TB) of double-data-rate 3 (DDR3) memory in 48 slots, up to two small form factor (SFF), hot-swappable drive bays for hard disk drives (HDDs) or solid state drives (SSDs), two dual-port and one quad-port mezzanine slots. These slots leverage the UCS virtual interface card (VIC) technology for up to 160 Gbps aggregate I/O bandwidth. The Cisco UCS B260 M4 server is designed to power the most demanding enterprise applications.

$3,697

UCSB-EX-M4-1 Technical Specifications

Cisco Systems Ucs Scalable M4 Blade

General Information
Brand: Cisco
Product Name: Cisco Ucs Scalable M4 Blade Mod without CPU DIMM
Product Series: B260 M4
Product Type: Barebone System
Controllers
Controller Type: 12Gb/s SAS
RAID Supported: Yes
Display & Graphics
Graphics Controller Manufacturer: Matrox
Graphics Controller Model: G200e
Graphics Memory Capacity: 8 MB
I/O Expansions
Number of Total Expansion: 2 Bays
Number of Internal 2.5″ Bays: 2
Number of Total Expansion Slots: 3
Memory
Maximum Memory: 3 TB
Memory Technology: DDR3 SDRAM
Memory Standard: DDR3-1600/PC3-12800
Number of Total Memory: 48 DDR3 Slots
Network & Communication
Ethernet Technology: Ethernet
Processor & Chipset
Number of Processors Supported: 2
Processor Supported: Xeon
64-bit Processing: Yes
Chipset Manufacturer: Intel
Chipset Model: C602J

SKU: UCSB-EX-M4-1 Category: Tags: , , , , , , ,
